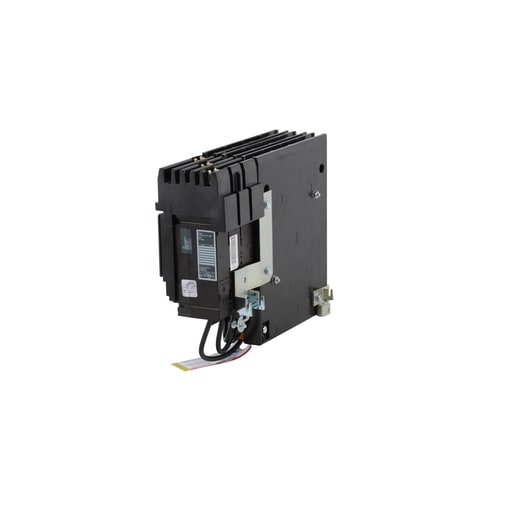

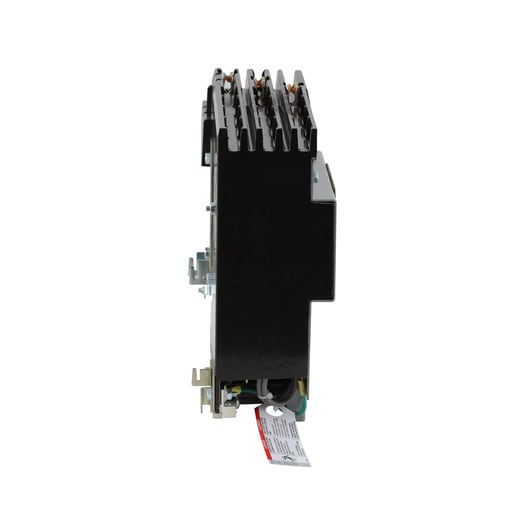

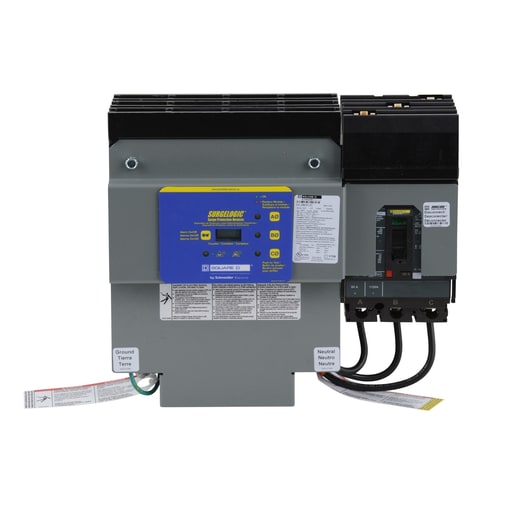

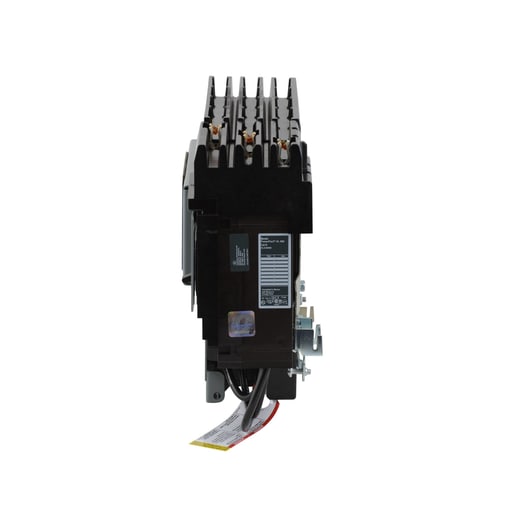

Square-D / Schneider - SQD HL2IMA12C Surge protection devi

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901642459

  • Amperage - 60 Amp

  • Catalog Number - HL2IMA12C

  • Country of Origin - Mexico

  • Current - 60 Amp

Packaging

  • 1 ea

EAN

00785901642459

Part #

165747

Catalog #

HL2IMA12C

Commercial reference

HL2IMA12C

12-Digit UPC:

785901642459

Amperage:

60 Amp

Catalog Number:

HL2IMA12C

Country of Origin:

Mexico

Current:

60 Amp

Depths:

142.1 mm

ERP_productname:

SQD HL2IMA12C SPD T2 HL I-LINE 120KA 208Y/120V 3P4W

Enclosure:

2

Family Brand Name:

Square D

Heights:

308.9 mm

Length:

483 mm

NEMA Size:

2

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

19.02 in

Sub Brand:

IMA

Tc Connection:

I-Line line;Lugs ground AWG 6 copper 35.40 lbf.in (4 N.m);Lugs neutral AWG 6 copper 35.40 lbf.in (4 N.m)

Type:

HL;Surge protection device;4-wire

Voltage:

120 Volt

Widths:

341.9 mm

SoneparProductId:

SKU_US_31416175

Surgelogic™ EMA and EBA series SPDs, HL2IMA12C, offer a full range of externally mounted surge suppression solutions. These units are designed to provide surge suppression from service entrance panels to point-of-use equipment. US and Canadian UL® Listed to the UL 1449 standard. Complies with requirements of NEC® Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems. They can be installed in accessory compartments behind the circuit breaker accessory cover. This accessory Certified to UL, IEC, CSA, CE, CCC, Standards. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
