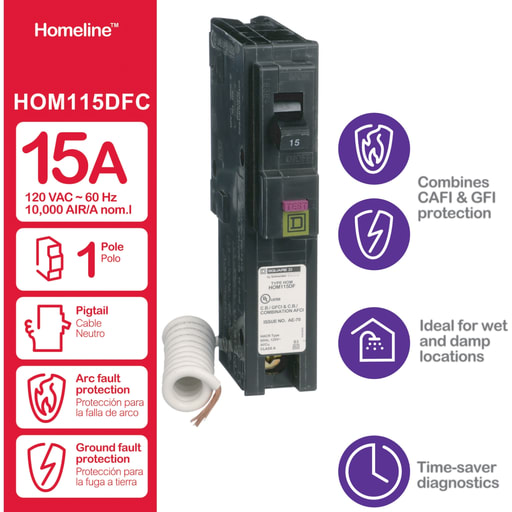

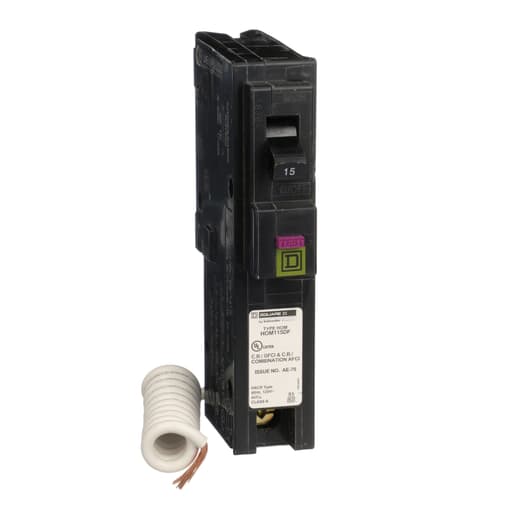

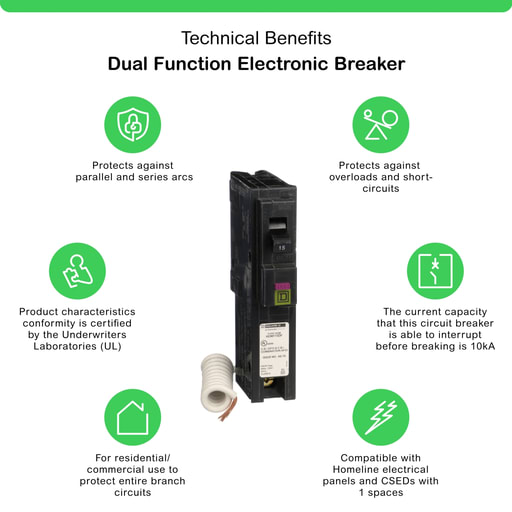

Square-D / Schneider - SQD HOM115DFC Mini circuit breaker,

12-Digit UPC:

785901986010

Amperage:

15 Amp

Applications:

HACR rated

Catalog Number:

HOM115DFC

Circuit Breaker Type:

Combination ARC-fault And Ground Fault

Country of Origin:

USA

Current:

15 Amp

Depths:

2.98 Inch

ERP_productname:

SQD HOM115DFC MINI CIRCUIT BREAKER, HOMELINE, 15A, 1 POLE, 120VAC, 10KA AIR, COMBO ARC/GROUND FAULT, PLUG IN, UL

Family Brand Name:

Square D

Heights:

3.13 Inch

Interrupt Rating:

10 kAIC

Length:

2.98 Inch

Mounting Type:

Plug-In

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Tc Connection:

Screw clamp terminals;AWG 14...AWG 8 aluminium/copper)1 ;AWG 14...AWG 10 copper)2 ;Pigtail neutral

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

1 in

Wire Size:

AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2 NULL
