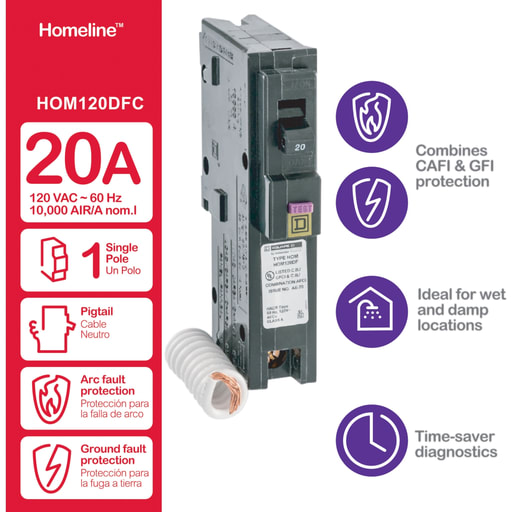

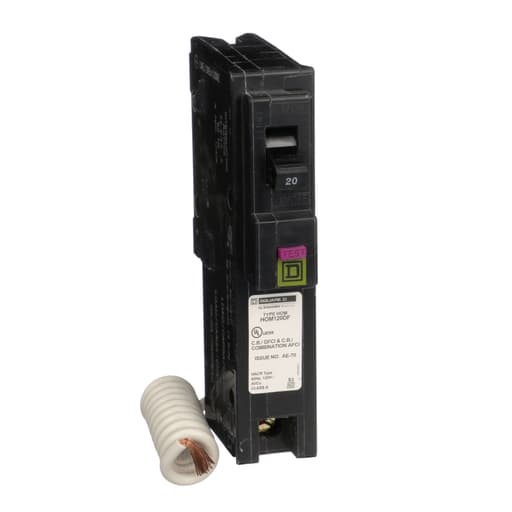

Square-D / Schneider - SQD HOM120DFC Mini circuit breaker,

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901983415

  • Amperage - 20 Amp

  • Applications - HACR rated

  • Catalog Number - HOM120DFC

  • Circuit Breaker Type - Combination ARC-fault And Ground Fault Class A 6 MA

Packaging

  • 1 ea

EAN

00785901983415

Part #

395216

Catalog #

HOM120DFC

Commercial reference

HOM120DFC

12-Digit UPC:

785901983415

Amperage:

20 Amp

Applications:

HACR rated

Catalog Number:

HOM120DFC

Circuit Breaker Type:

Combination ARC-fault And Ground Fault Class A 6 MA

Country of Origin:

USA

Current:

20 Amp

Depths:

2.98 Inch

ERP_productname:

SQD HOM120DFC MINI CIRCUIT BREAKER, HOMELINE, 20A, 1 POLE, 120VAC, 10KA AIR, COMBO ARC/GROUND FAULT, PLUG IN, UL

Family Brand Name:

Square D

Heights:

3.13 Inch

Interrupt Rating:

10 kAIC

Length:

2.98 Inch

Mounting Type:

Plug-In

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Tc Connection:

Clamp terminal for 2 cables;AWG 14...AWG 8 aluminium/copper)1 ;AWG 14...AWG 10 copper)2 ;Pigtail neutral

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

1 in

Wire Size:

AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2

SoneparProductId:

SKU_US_191808498

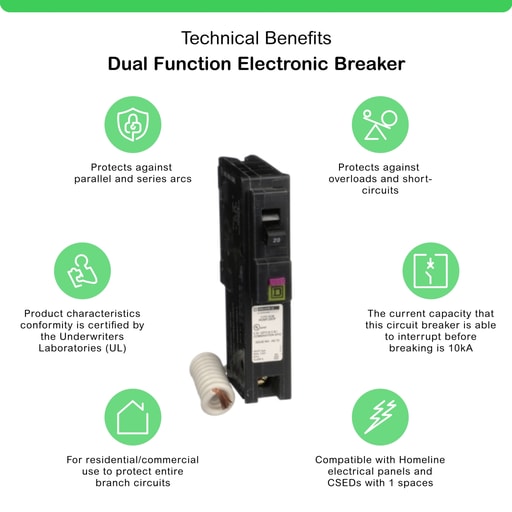

Square D® Homeline® Miniature Circuit Breakers are engineered and designed for fast installation and superior circuit protection. Square D® Homeline® Circuit Breakers are designed to plug into Homeline® Load Centers® to provide circuit protection. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This products is certified to adhere to the specifications listed in the data sheet by UL Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HOM1HT; HOM1PA; HOM3060L225PGC; HOM3060M200PC; HOM3060M200PC1AVP; HOM4080M200PCAFVP; RC1624M100S; RC2040M150CH; RC2040M200C; RC2040M200CGP; RC2040M200CH; RC2040M200S; RC2040M200SHS; RC816D200CH; RC816D400SL; RC816F100CH; RC816F125CH; RC816F150C; RC816F150CH; RC816F200C; RC816F200CH; RC816F200S; SC1624M100F; SC1624M100S; SC1624M125F; SC1624M125S; SC816D150C; SC816D200C; SO1020M100S; SO1020VP; SO2040M200S; SO2040VP; HOM612L100RB; HOM816M200PFTRB; HOMELEC1PA; QO1LO; HOM2040M100PC; HOM2448L125PGC; HOM2040L125PGC; HOM4080M200PCVP; HOM816L125PRB; HOM4080L225PGC; HOM1224L125PGC; HOM4080L225PC; HOM2448L125PQGC; HOM2040L125PC; HOM1224L125PRB; HOM1224L125PC
