Square-D / Schneider - SQD HOM24L70RBCP Load center, Homel

12-Digit UPC:

047569071225

Amperage:

70 Amp

Catalog Number:

HOM24L70RBCP

Country of Origin:

Mexico

Current:

70 Amp

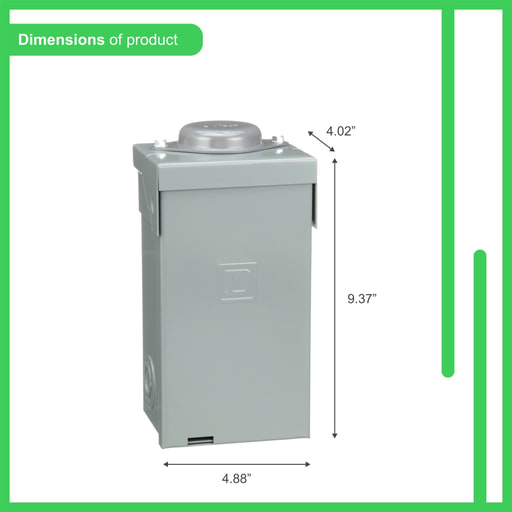

Depths:

102 mm

ERP_productname:

SQD HOM24L70RBCP LOAD CENTER, HOMELINE, 1 PHASE, 2 SPACES, 4 CIRCUITS, 70A FIXED MAIN LUGS, NEMA3R, CONSUMER PACK

Enclosure:

3R

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Gray

Heights:

238 mm

Interrupt Rating:

10 kAIC

Length:

4.02 Inch

Material:

Tin Plated Aluminium: Busbar

NEMA Size:

3R

Number of Circuits:

4

Number of Phases:

1 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Tc Connection:

AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper

Type:

Load Center

Voltage:

120/240 Volt

Widths:

124 mm

Wire Size:

AWG 12...AWG 3 aluminium;AWG 14...AWG 4 copper

SoneparProductId:

SKU_US_192503265
