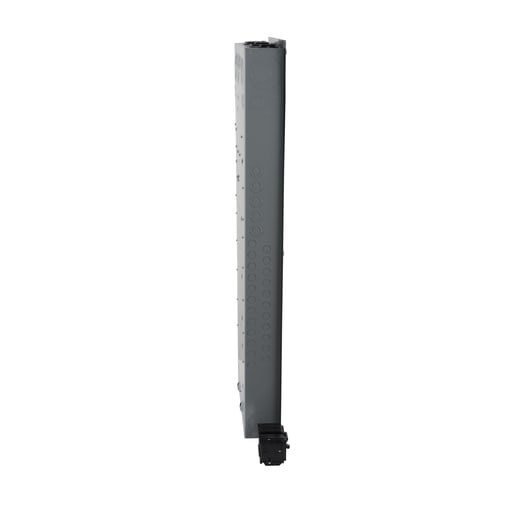

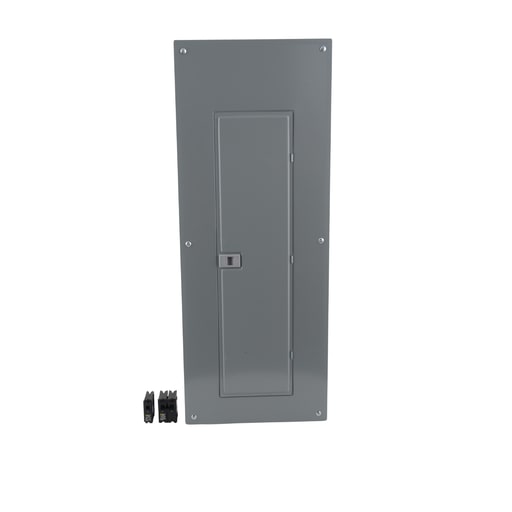

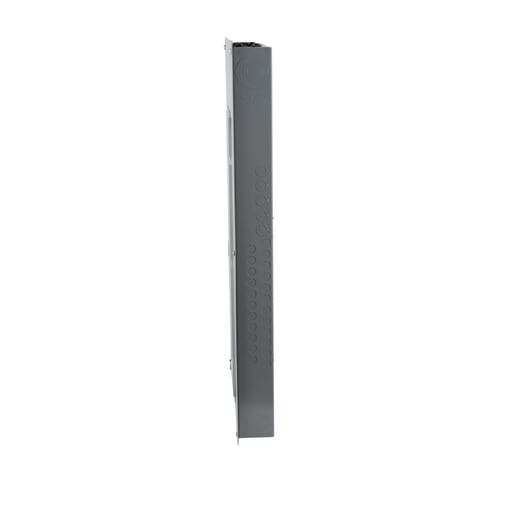

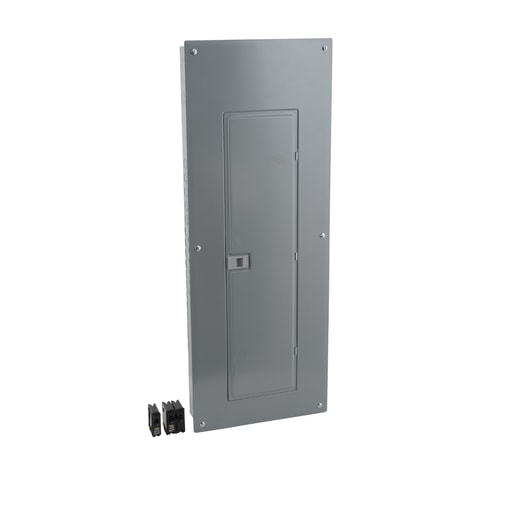

Square-D / Schneider - SQD HOM4080M200PQCVP Load center, H

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Load center is also supplied with a two pole 30A 120/240 VAC circuit breaker and a one pole 20A 120/240 VAC circuit breaker. The load center is also supplied a Qwik grip assembly kit. Homeline load center provides a 10 kA breaking capacity. This system provides 40 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 39.37 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Load center is a value packed system. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HOM115PCAFIC; HOM250PSPD; HOMCGK2C; PK27GTA; PKQGA; HOM120PDFC; HOM2175SB; HEPD25; HOM120PCAFIC; HEPD50; HOM120CP; HEPD80; HOM230CP; HEPD25MKF; HOM115PDFC; HEPD58MKF; HOM115CP; HOM240CP
