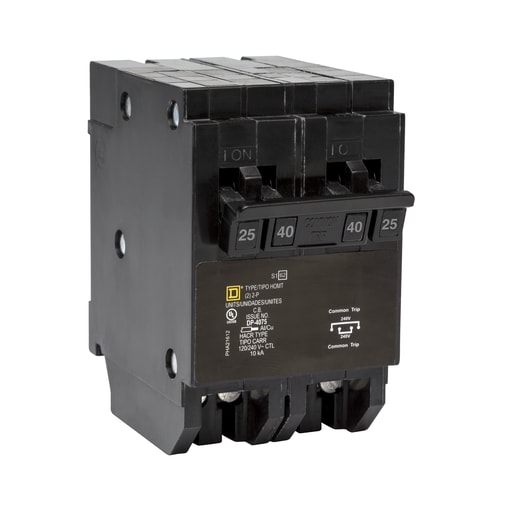

Square-D / Schneider - SQD HOMT225240 Quad tandem circuit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901970422
Catalog Number - HOMT225240
Circuit Breaker Type - Quad Tandem
Country of Origin - Mexico
Current - 25 Amp
Packaging
1 ea
EAN
00785901970422
Part #
169307
Catalog #
HOMT225240
Commercial reference
HOMT225240
12-Digit UPC:
785901970422
Catalog Number:
HOMT225240
Circuit Breaker Type:
Quad Tandem
Country of Origin:
Mexico
Current:
25 Amp
Depths:
3.29 Inch
ERP_productname:
SQD HOMT225240 QUAD TANDEM CIRCUIT BREAKER, HOMELINE, 1 X 2 POLE AT 25A, 1 X 2 POLE AT 40A, 120/240VAC, 10KA AIR, PLUG IN, UL
Family Brand Name:
Square D
Heights:
3.13 Inch
Mounting Type:
Plug-In
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Voltage:
120/240 Volt
Widths:
1.97 in
SoneparProductId:
SKU_US_84515218
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 25A at 120/240 VAC and other two pole breaker is rated 40A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 25A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 40A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.
