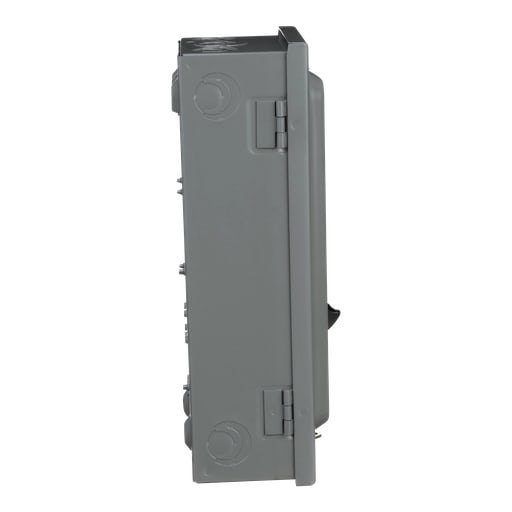

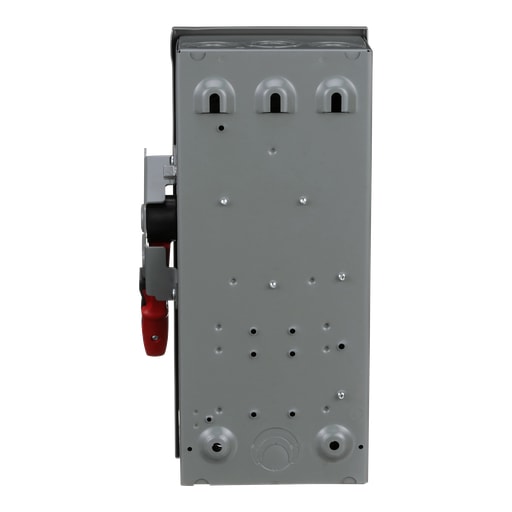

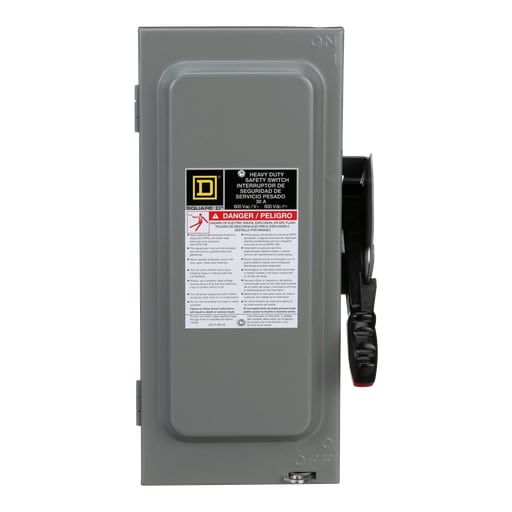

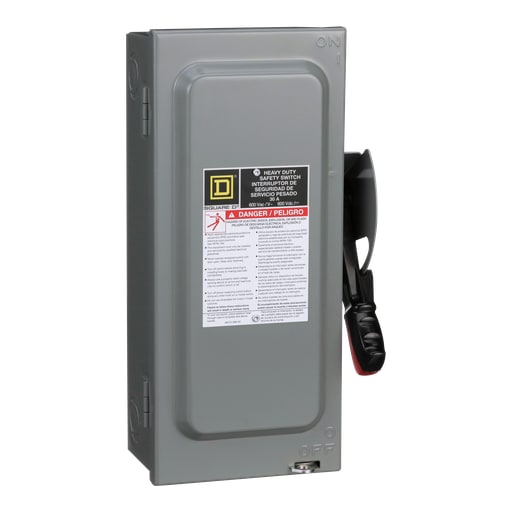

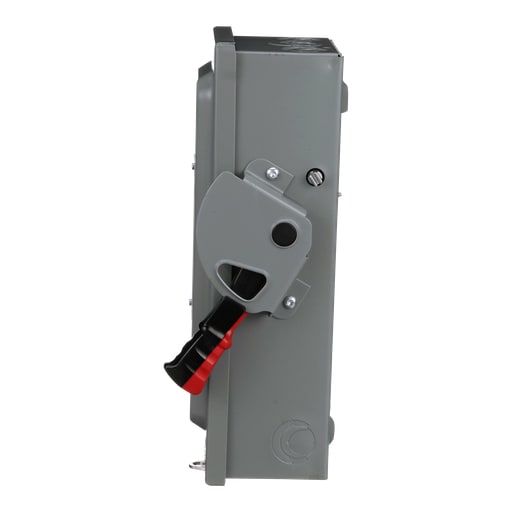

Square-D / Schneider - SQD HU361N Safety switch, heavy dut

12-Digit UPC:

785901983064

Amperage:

30 Amp

Applications:

Heavy application

Catalog Number:

HU361N

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

USA

Current:

30 Amp

Depths:

4.87 Inch

ERP_productname:

SQD HU361N SWITCH NO FUSE 600V 30A NEMA1 N

Enclosure:

1

Enclosure Material:

Steel

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

14.6 Inch

Mounting Type:

Surface

NEMA Size:

1

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

200 kA

Size:

4.87 in

Tc Connection:

Lugs

Type:

Non-fusible disconnect;Single Throw Safety Switch

Voltage:

600 Volt

Widths:

7.55 in

Wire Size:

AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_29578879
