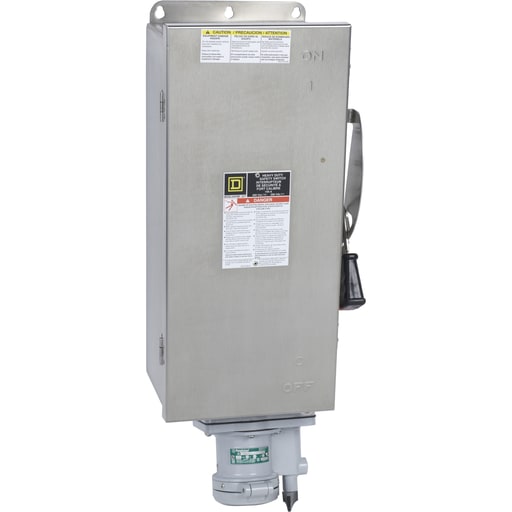

Square-D / Schneider - SQD HU363DSWA Safety switch, heavy
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901666318
Amperage - 100 Amp
Applications - 75 HP 480 V AC-100 HP 600 V AC,PLUG ACP1034CD APPLETON POWERTITE
Catalog Number - HU363DSWA
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)
Packaging
1 ea
EAN
00785901666318
Part #
152007
Catalog #
HU363DSWA
Commercial reference
HU363DSWA
12-Digit UPC:
785901666318
Amperage:
100 Amp
Applications:
75 HP 480 V AC-100 HP 600 V AC,PLUG ACP1034CD APPLETON POWERTITE
Catalog Number:
HU363DSWA
Conductor Size:
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Country of Origin:
USA
Current:
100 Amp
Depths:
6.97 Inch
ERP_productname:
SQD HU363DSWA SW NOT FUSIBLE HD 100A STAINLESS/RECEP
Enclosure:
3,3R,4
Enclosure Material:
Stainless Steel
Enclosure Rating:
3, 3R, 4, 4X, 5, 12
Family Brand Name:
Square D
Heights:
28 Inch
Mounting Type:
Surface
NEMA Size:
3,3R,4
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Size:
6.97 in
Tc Connection:
Receptacle
Type:
Non-fusible disconnect switch;Receptacle Switch
Voltage:
250 Volt
Widths:
11.25 in
Wire Size:
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
SoneparProductId:
SKU_US_29504829
