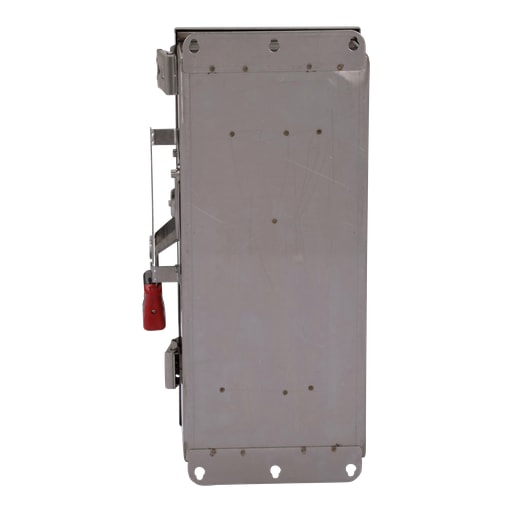

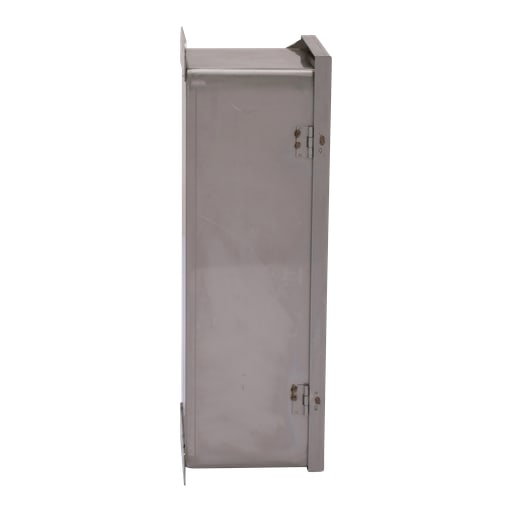

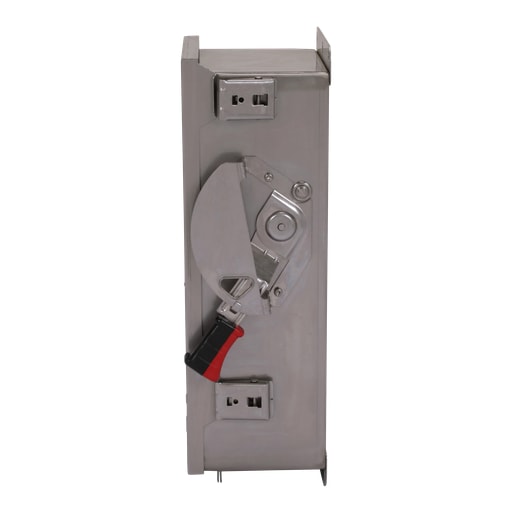

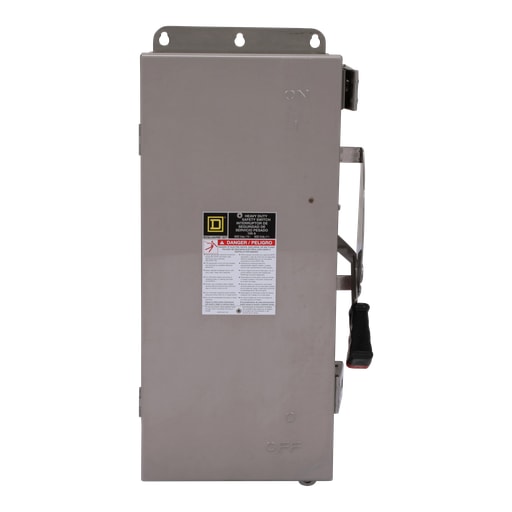

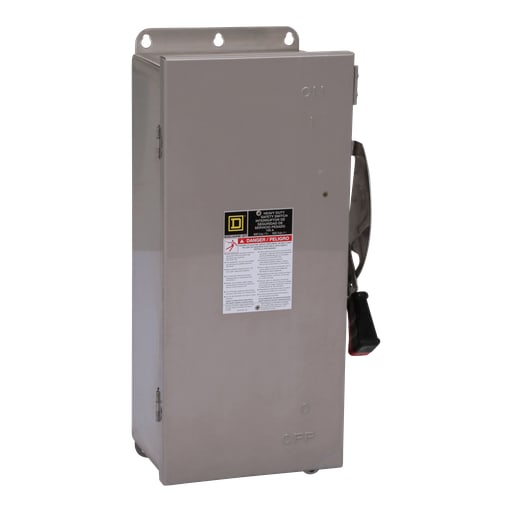

Square-D / Schneider - SQD HU363SS Safety switch, heavy du
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901607229
Amperage - 100 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU363SS
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)
Packaging
1 ea
EAN
00785901607229
Part #
125468
Catalog #
HU363SS
Commercial reference
HU363SS
12-Digit UPC:
785901607229
Amperage:
100 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU363SS
Conductor Size:
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Country of Origin:
USA
Current:
100 Amp
Depths:
6.97 Inch
ERP_productname:
SQD HU363SS SWITCH UNFUSED HD 100A NEMA 44X5 316 SS
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Enclosure Rating:
4, 4X, 5
Family Brand Name:
Square D
Heights:
11-1/4 Inch
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
200 kA
Size:
6.97 in
Tc Connection:
Lugs
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
20.82 in
Wire Size:
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
