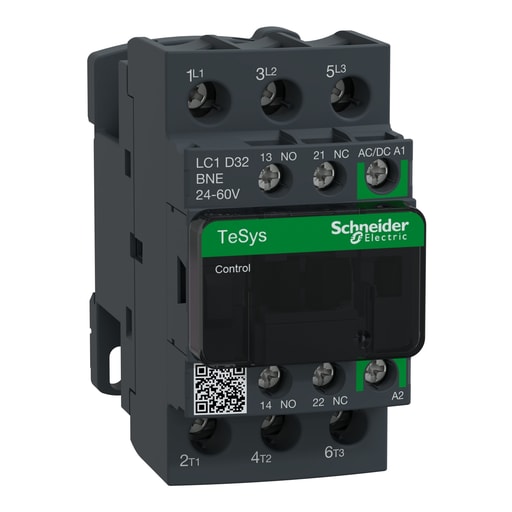

Square-D / Schneider - SQD LC1D32BNE IEC contactor, TeSys

Essential specifications

12-Digit UPC - 606480987758
Applications - Motor control;Resistive load
Catalog Number - LC1D32BNE
Coil Voltage - 24...60 V AC 50/60 HZ-24...60 V DC
Color - Gray SE GREY 6),Green SE GREEN 2)

Packaging

1 ea

EAN

03606480987755

Part #

223550

Catalog #

LC1D32BNE

Commercial reference

LC1D32BNE

12-Digit UPC:

606480987758

Applications:

Motor control;Resistive load

Catalog Number:

LC1D32BNE

Coil Voltage:

24...60 V AC 50/60 HZ-24...60 V DC

Color:

Gray SE GREY 6),Green SE GREEN 2)

Country of Origin:

France

Depths:

92 mm

ERP_productname:

SQD LC1D32BNE TESYS D CTR, 32A, 24-60VAC/DC

Family Brand Name:

Schneider Electric

Heights:

85 mm

Impedance:

2 MOhm - Ith 50 A 50 Hz For Power Circuit

Size:

45 MM,85 MM,92 MM

Sub Brand:

TeSys D Green;TeSys Deca

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1.5-10 MMA.SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 2 2.5-10 MMA.SOLID

Type:

AC/DC electronic;Contactor

Voltage:

690 Volt

Wattage:

2 Watt AC-3 - 5 Watt AC-1

Widths:

45 mm

SoneparProductId:

SKU_US_30077644

TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.97 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Compatible Products: LADN22; LADN11; LADN20; LAD8N11; LAD9V2; LAD9R1V; LADT2; LAD9R1; LADN40; LAD6K10B; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LAD9V6; LADR0; LADN04; LADN13; LAD9V5; LAD9ET1S; LADR4; LADT4; LAD8N02; GV2G445; GV2G245 - Cross Sell Products: GV2ME32; LRD32; GV2LE32
