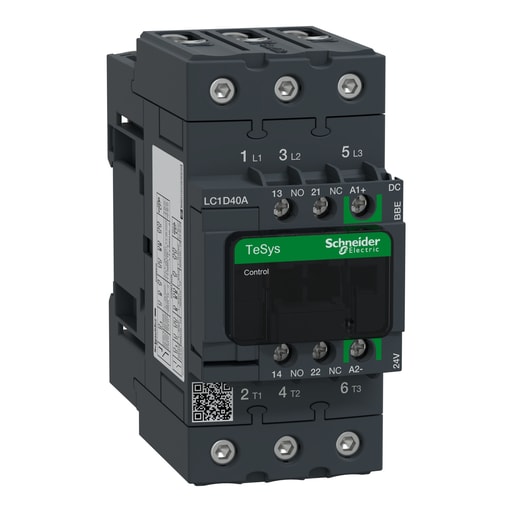

Square-D / Schneider - SQD LC1D40ABBE IEC contactor, TeSys

Essential specifications

12-Digit UPC - 606480987819
Applications - Motor control;Resistive load
Catalog Number - LC1D40ABBE
Coil Voltage - 24 V
Color - Gray SE GREY 6),Green SE GREEN 2)

Packaging

1 ea

EAN

03606480987816

Part #

198889

Catalog #

LC1D40ABBE

Commercial reference

LC1D40ABBE

12-Digit UPC:

606480987819

Applications:

Motor control;Resistive load

Catalog Number:

LC1D40ABBE

Coil Voltage:

24 V

Color:

Gray SE GREY 6),Green SE GREEN 2)

Country of Origin:

France

Depths:

120 mm

ERP_productname:

SQD LC1D40ABBE TESYS D CONTACTOR 3P 40A AC-3 UP TO 440V COIL 24V DC EVERLINK

Family Brand Name:

Schneider Electric

Heights:

122 mm

Impedance:

1.5 MOhm - Ith 60 A 50 Hz For Power Circuit

Size:

120 MM,122 MM,55 MM

Sub Brand:

TeSys D Green;TeSys Deca

Tc Connection:

POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.SOLID-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.SOLID-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 1 1-35 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT EVERLINK BTR SCREW CONNECTORS 2 1-25 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END

Type:

DC low consumption;Contactor

Voltage:

690 Volt

Wattage:

5.4 Watt AC-1 - 2.4 Watt AC-3

Widths:

55 mm

SoneparProductId:

SKU_US_192407414

TeSys D Green contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 40A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 90A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Equipped with an electronic 24V DC coil, low consumption, for a direct control by a PLC output 24V DC / 500mA. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.19 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Compatible Products: LADN22; LADN11; LADN20; LAD8N11; GV3G264; LADT2; LAD9R3; LADN40; LAD6K10B; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LADN04; LADN13; LAD4CM; LAD9ET1S; LADR4; LADT4; LAD8N02; LA4DB3B - Cross Sell Products: GV3P40; LRD340; GV3L40
