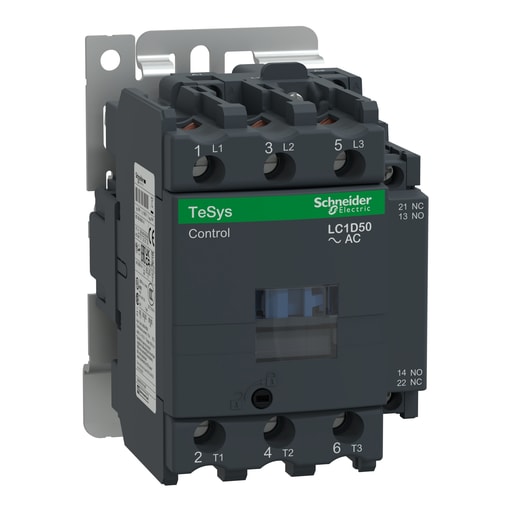

Square-D / Schneider - SQD LC1D50LE7 CONTACTOR 600VAC 50AM

12-Digit UPC:

389110296146

Applications:

Resistive load;motor control

Catalog Number:

LC1D50LE7

Coil Voltage:

208 V AC 50/60 Hz;0.3...0.6 Uc -40-70 ?.C drop-out AC 50/60 Hz;0.8...1.1 Uc -40-60 ?.C operational AC 50 Hz;0.85...1.1 Uc -40-60 ?.C operational AC 60 Hz;1...1.1 Uc 60-70 ?.C operational AC 50/60 Hz

Country of Origin:

Czechia

Depths:

119 mm

ERP_productname:

SQD LC1D50LE7 CONTACTOR, TESYS DECA, 3P(3NO),AC-3/AC-3E/<=440V 50A,208V AC 50/60HZ COIL, SCREW CLAMP TERMINALS

Family Brand Name:

Schneider Electric

Heights:

127 mm

Number of Poles:

3 Pole

Size:

4.69 in

Sub Brand:

TeSys;LC1D

Tc Connection:

Control circuit screw clamp terminals 1 1-4 mm.rigid;control circuit screw clamp terminals 2 1-4 mm.rigid;control circuit screw clamp terminals 1 1-4 mm.flexible without cable end;control circuit screw clamp terminals 2 1-4 mm.flexible without cable end;control circuit screw clamp terminals 1 1-2.5 mm.flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm.flexible with cable end;power circuit screw terminals 1 2.5-25 mm.rigid;power circuit screw terminals 2 2.5-16 mm.rigid;power circuit screw terminals 1 2.5-25 mm.flexible without cable end;power circuit screw terminals 2 2.5-16 mm.flexible without cable end;power circuit screw terminals 1 2.5-25 mm.flexible with cable end;power circuit screw terminals 2 2.5-10 mm.flexible with cable end

Type:

Contactor

Wattage:

3.7 Watt AC-3 - 9.6 Watt AC-1

Widths:

75 mm

SoneparProductId:

SKU_US_29107771
