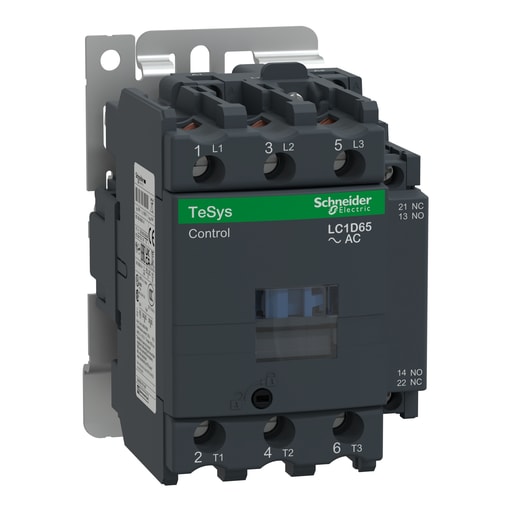

Square-D / Schneider - SQD LC1D65E7 CONTACTOR 600VAC 65AMP

Essential specifications

12-Digit UPC - 785901908548
Applications - Resistive load;motor control
Catalog Number - LC1D65E7
Coil Voltage - 48@50/60Hz V
Country of Origin - Czechia

Packaging

1 ea

EAN

03389110436761

Part #

164772

Catalog #

LC1D65E7

Commercial reference

LC1D65E7

12-Digit UPC:

785901908548

Applications:

Resistive load;motor control

Catalog Number:

LC1D65E7

Coil Voltage:

48@50/60Hz V

Country of Origin:

Czechia

Depths:

176 mm

ERP_productname:

SQD LC1D65E7 CONTACTOR 600VAC 65AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

127 mm

Size:

119 MM,127 MM,75 MM

Sub Brand:

LC1D

Tc Connection:

Control circuit screw clamp terminals 1 1-4 mm.rigid;control circuit screw clamp terminals 2 1-4 mm.rigid;control circuit screw clamp terminals 1 1-4 mm.flexible without cable end;control circuit screw clamp terminals 2 1-4 mm.flexible without cable end;control circuit screw clamp terminals 1 1-2.5 mm.flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm.flexible with cable end;power circuit screw terminals 1 2.5-25 mm.rigid;power circuit screw terminals 2 2.5-16 mm.rigid;power circuit screw terminals 1 2.5-25 mm.flexible without cable end;power circuit screw terminals 2 2.5-16 mm.flexible without cable end;power circuit screw terminals 1 2.5-25 mm.flexible with cable end;power circuit screw terminals 2 2.5-10 mm.flexible with cable end

Type:

Contactor

Wattage:

4.2 Watt AC-3 - 6.4 Watt AC-1

Widths:

85 mm

SoneparProductId:

SKU_US_31967964

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 65A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 20HP at 200 to 208VAC, 20HP at 240VAC, 40HP at 480VAC and 50HP at 600VAC three phase. Contactor is also rated for 5HP at 115VAC and 10HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 125A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 48 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.90 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LADN11; LADN20; LAD8N11; LADT2; LADN40; LADN31; LADN02; LADT0; LAD8N20; LADS2; LADR2; LADR0; LADN04; LADN13; LADR4; LADT4; LAD8N02; LA4DFB; LA4DT2U; LA4DWB; LA4DT0U; LA4DA1E; LA4DT4U - Cross Sell Products: LRD3363 - Spare Part Products: LX1D6E7
