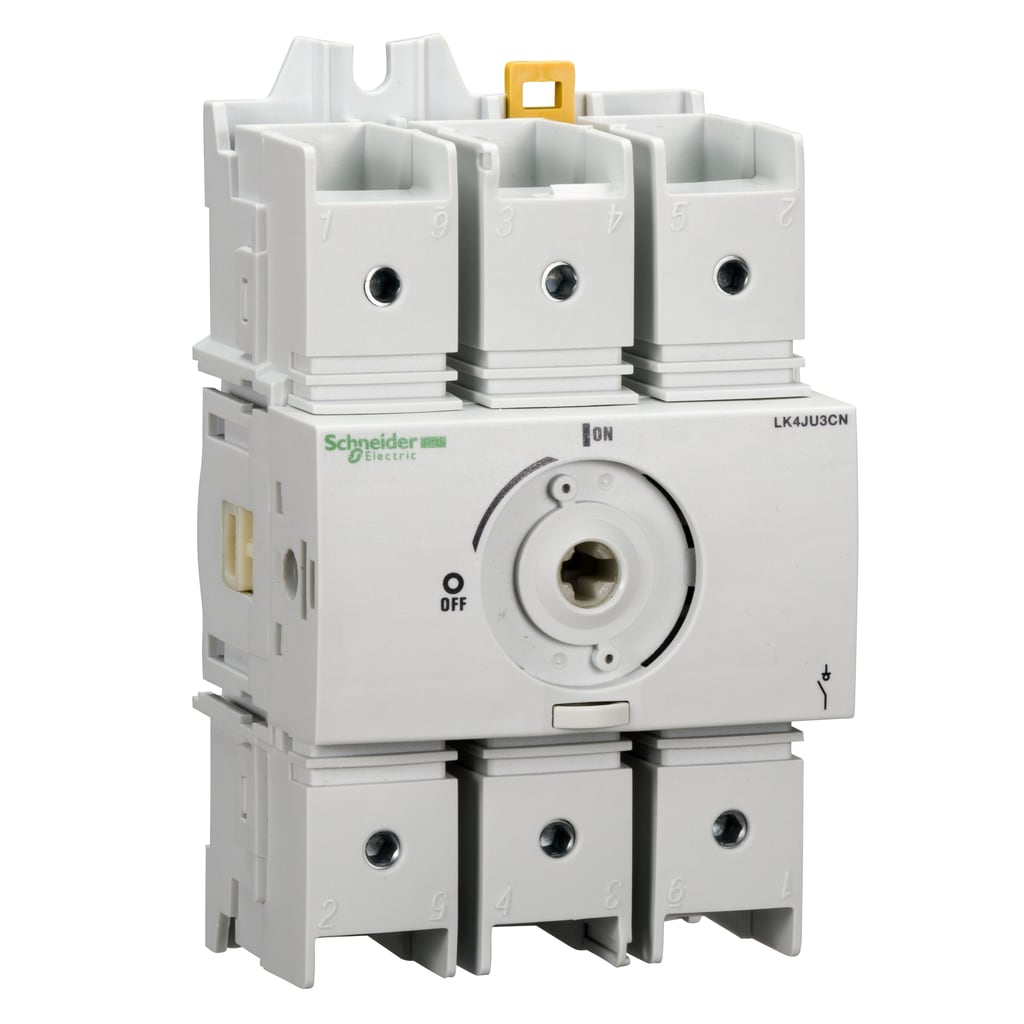

Square-D / Schneider - SQD LK4JU3CN Disconnect Switch, TeS

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480510437

  • Catalog Number - LK4JU3CN

  • Country of Origin - China

  • Depths - 64 mm

  • ERP_productname - SQD LK4JU3CN DISCONNECT SWITCH NO FUSE 600V 100A 3P

Packaging

  • 1 ea

EAN

03606480510434

Part #

149518

Catalog #

LK4JU3CN

Commercial reference

LK4JU3CN

12-Digit UPC:

606480510437

Catalog Number:

LK4JU3CN

Country of Origin:

China

Depths:

64 mm

ERP_productname:

SQD LK4JU3CN DISCONNECT SWITCH NO FUSE 600V 100A 3P

Family Brand Name:

Schneider Electric

Heights:

125 mm

Voltage:

600 Volt

Widths:

79.5 mm

SoneparProductId:

SKU_US_30875801

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 100 ampere rating. It can be used in applications up to 600 VAC. This nonfusible disconnect switch has a 20HP rating at 240VAC, a 50HP rating at 480VAC, and a 50HP rating at 600VAC. This disconnect switch is operated with a rotary handle. This 100A disconnect switch has a 100kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 4 AWG to 2/0 AWG copper or aluminum wire. TeSys LK his motor circuit protector is UL Listed and CSA certified.
