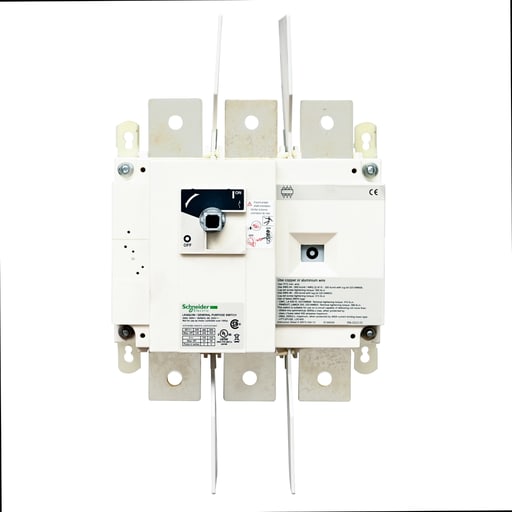

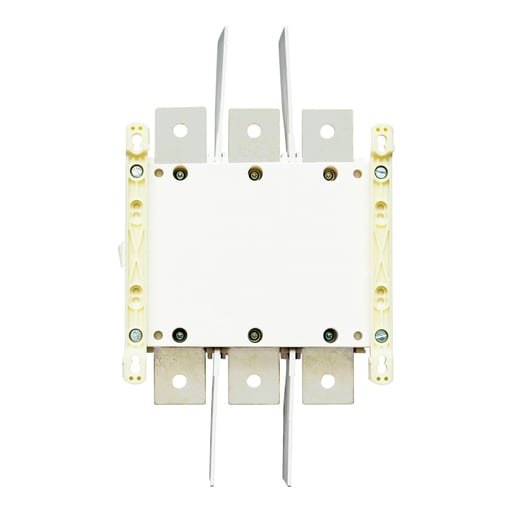

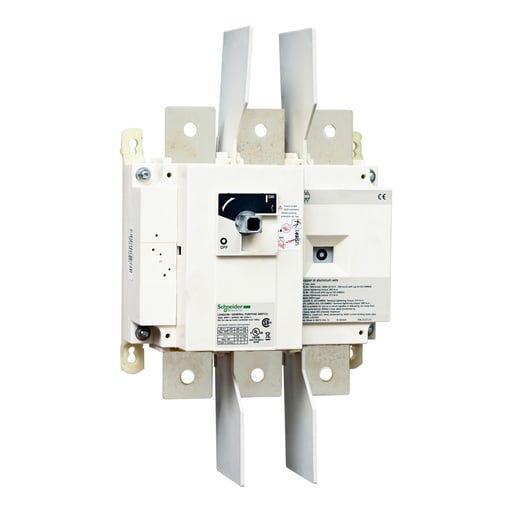

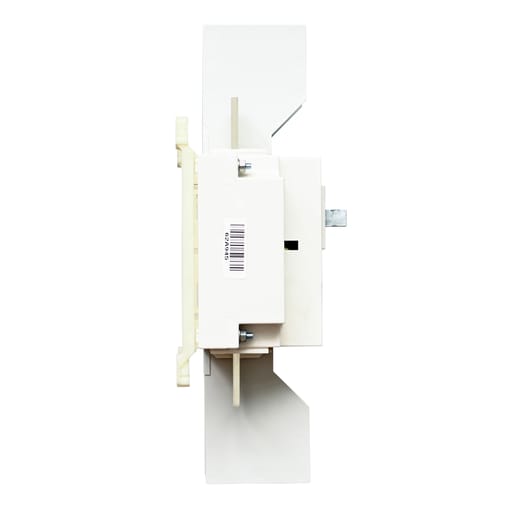

Square-D / Schneider - SQD LK4QU3N Disconnect Switch, TeSy

Essential specifications

12-Digit UPC - 606480510468
Actuator - Rotary handle
Amperage - 200 A690 V AC AC-23A IEC-400 A400 V AC AC-22A IEC-400 A400 V AC AC-23A IEC-400 A690 V AC AC-22A IEC-400 Amp CSA-400 Amp UL
Applications - 125 HP 240 V 312 A AC-250 HP 480 V 302 A AC-350 HP 600 V 336 A AC-20 HP 125 V 148 A DC-50 HP 250 V 173 A DC
Catalog Number - LK4QU3N

Packaging

1 ea

EAN

03606480510465

Part #

149523

Catalog #

LK4QU3N

Commercial reference

LK4QU3N

12-Digit UPC:

606480510468

Actuator:

Rotary handle

Amperage:

200 A690 V AC AC-23A IEC-400 A400 V AC AC-22A IEC-400 A400 V AC AC-23A IEC-400 A690 V AC AC-22A IEC-400 Amp CSA-400 Amp UL

Applications:

125 HP 240 V 312 A AC-250 HP 480 V 302 A AC-350 HP 600 V 336 A AC-20 HP 125 V 148 A DC-50 HP 250 V 173 A DC

Catalog Number:

LK4QU3N

Country of Origin:

France

Depths:

128 mm

ERP_productname:

SQD LK4QU3N DISCONNECT SWITCH NO FUSE 600V 400A 3P

Family Brand Name:

Schneider Electric

Heights:

260 mm

Number of Poles:

3 Pole

Size:

5.04 in

Sub Brand:

TeSys LK

Tc Connection:

LUGS-RING TERMINALS 1 16-16 MMA.

Type:

Non-fusible disconnect switch;Disconnect Switch

Voltage:

600 Volt

Wattage:

185 kW 690 Volt-220 kW 400 Volt-280 kW 500 Volt

Widths:

230 mm

SoneparProductId:

SKU_US_32271765

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 400 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 125 HP rating at 240 VAC, a 250 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 400A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 4 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 10.20 inches tall, 9.05 inches wide and 4.92 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GS2AH130; GS2AH140; GS2AH430; GS2AH440; GS2AE2; GS2AE21; GS2AEH12
