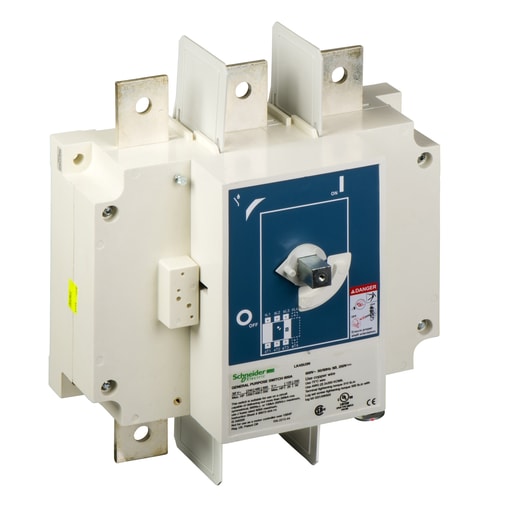

Square-D / Schneider - SQD LK4SU3N Disconnect Switch, TeSy

Essential specifications

12-Digit UPC - 606480510475
Actuator - Rotary handle
Amperage - 200 A690 V AC AC-23A IEC-630 A400 V AC AC-22A IEC-630 A400 V AC AC-23A IEC-500 A690 V AC AC-22A IEC-600 Amp CSA-600 Amp UL
Applications - 350 HP 600 V 336 A AC-20 HP 125 V 148 A DC-50 HP 250 V 173 A DC-200 HP 240 V 480 A AC-400 HP 480 V 477 A AC
Catalog Number - LK4SU3N

Packaging

1 ea

EAN

03606480510472

Part #

192386

Catalog #

LK4SU3N

Commercial reference

LK4SU3N

12-Digit UPC:

606480510475

Actuator:

Rotary handle

Amperage:

200 A690 V AC AC-23A IEC-630 A400 V AC AC-22A IEC-630 A400 V AC AC-23A IEC-500 A690 V AC AC-22A IEC-600 Amp CSA-600 Amp UL

Applications:

350 HP 600 V 336 A AC-20 HP 125 V 148 A DC-50 HP 250 V 173 A DC-200 HP 240 V 480 A AC-400 HP 480 V 477 A AC

Catalog Number:

LK4SU3N

Country of Origin:

France

Depths:

140 mm

ERP_productname:

SQD LK4SU3N DISCONNECT SWITCH NO FUSE 600V 600A 3P

Family Brand Name:

Schneider Electric

Heights:

300 mm

Number of Poles:

3 Pole

Size:

5.51 in

Sub Brand:

TeSys LK

Tc Connection:

LUGS-RING TERMINALS 2 34-34 MMA.- BARS 2 30 X 5 MM

Type:

Non-fusible disconnect switch;Disconnect Switch

Voltage:

600 Volt

Wattage:

185 kW 690 Volt-355 kW 400 Volt-450 kW 500 Volt

Widths:

280 mm

SoneparProductId:

SKU_US_29760734

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 600 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 200 HP rating at 240 VAC, a 400 HP rating at 480 VAC, a 350 HP rating at 600 VAC, a 20 HP rating at 125 VDC and a 50 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 600A disconnect switch has a 200A short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept up to two 2 AWG to 600 kcmil copper or aluminum wire. The disconnect switch is 18.12 inches tall, 11.00 inches wide and 5.50 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: GS2AH150; GS2AH160; GS2AE61; GS2AEH12
