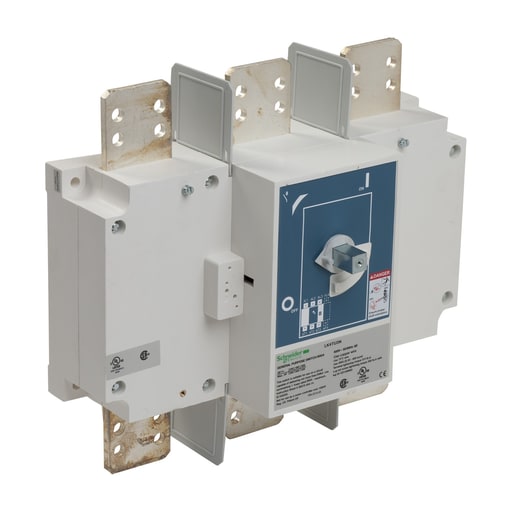

Square-D / Schneider - SQD LK4TU3N TeSys LK - disconnect s
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480510482
Actuator - Rotary handle
Amperage - 800 A400 V AC AC-22A IEC-800 A400 V AC AC-23A IEC-630 A690 V AC AC-22A IEC-400 A690 V AC AC-23A IEC-800 Amp CSA-800 Amp UL
Applications - 200 HP 240 V 480 A AC-500 HP 480 V 477 A AC-500 HP 600 V 336 A AC
Catalog Number - LK4TU3N
Packaging
1 ea
EAN
03606480510489
Part #
266225
Catalog #
LK4TU3N
Commercial reference
LK4TU3N
12-Digit UPC:
606480510482
Actuator:
Rotary handle
Amperage:
800 A400 V AC AC-22A IEC-800 A400 V AC AC-23A IEC-630 A690 V AC AC-22A IEC-400 A690 V AC AC-23A IEC-800 Amp CSA-800 Amp UL
Applications:
200 HP 240 V 480 A AC-500 HP 480 V 477 A AC-500 HP 600 V 336 A AC
Catalog Number:
LK4TU3N
Country of Origin:
France
Depths:
140 mm
ERP_productname:
SQD LK4TU3N TESYS LK - DISCONNECT SWITCH -3P - 800A - AC
Family Brand Name:
Schneider Electric
Heights:
320 mm
Number of Poles:
3 Pole
Size:
5.51 in
Sub Brand:
TeSys LK
Tc Connection:
LUGS-RING TERMINALS 2 34-34 MMA.- BARS 2 40 X 5 MM
Type:
Non-fusible disconnect switch;Disconnect Switch
Voltage:
600 Volt
Wattage:
450 kW 400 Volt-560 kW 500 Volt-400 kW 690 Volt
Widths:
370 mm
SoneparProductId:
SKU_US_29113383
