Square-D / Schneider - SQD LV434063 I/O (input/output) app

CopyCopy
Square-D / Schneider - SQD LV434063 I/O (input/output) app

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480631149

  • Catalog Number - LV434063

  • Country of Origin - Indonesia

  • Current - 165 mA

  • Depths - 70.6 mm

Packaging

  • 1 ea

EAN

03606480631146

Part #

105186

Catalog #

LV434063

Commercial reference

LV434063

12-Digit UPC:

606480631149

Catalog Number:

LV434063

Country of Origin:

Indonesia

Current:

165 mA

Depths:

70.6 mm

ERP_productname:

SQD LV434063 CIRCUIT BREAKER I/O MODULE

Family Brand Name:

Schneider Electric

Heights:

116 mm

Length:

10 m

Mounting Type:

Clips

Type:

I/O module

Widths:

71.7 mm

SoneparProductId:

SKU_US_29682284

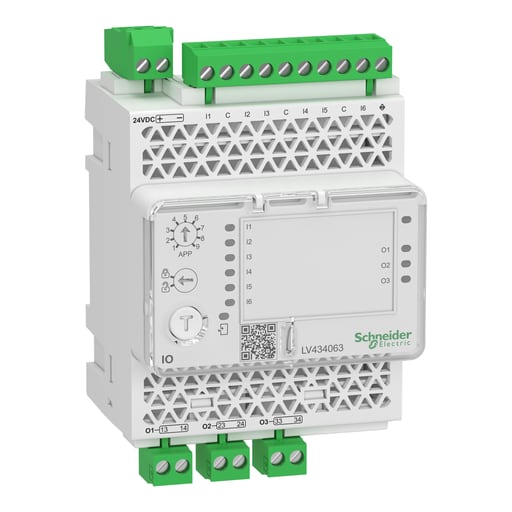

This I/O module is an Input/Output application module and it is part of EnerlinX communication system. This I/O module is compatible with Masterpact, Compact and PowerPact devices. It is used for protection, circuit breaker control, motor control, energy management and monitoring applications. It provides six digital inputs, three digital outputs and one analog input. It is equipped on the top with one 24VDC screw clamp terminal block and one terminal block for the 6 digital inputs. There are two RJ45 sockets on the bottom for ULP, and 4 terminal blocks for the digital outputs and analog input. The I/O module is a DIN rail mounting device and its dimensions are 72mm x 116mm x 71mm. The protection degree is IP4x on the front face and IP2x on the connectors. The I/O module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The I/O module can be configured and updated (firmware) using EcoStruxure Power Commission software. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: TRV00880; LV429375; C40F32D400; C63F32D630; C25F3TM250; C63H32D630
