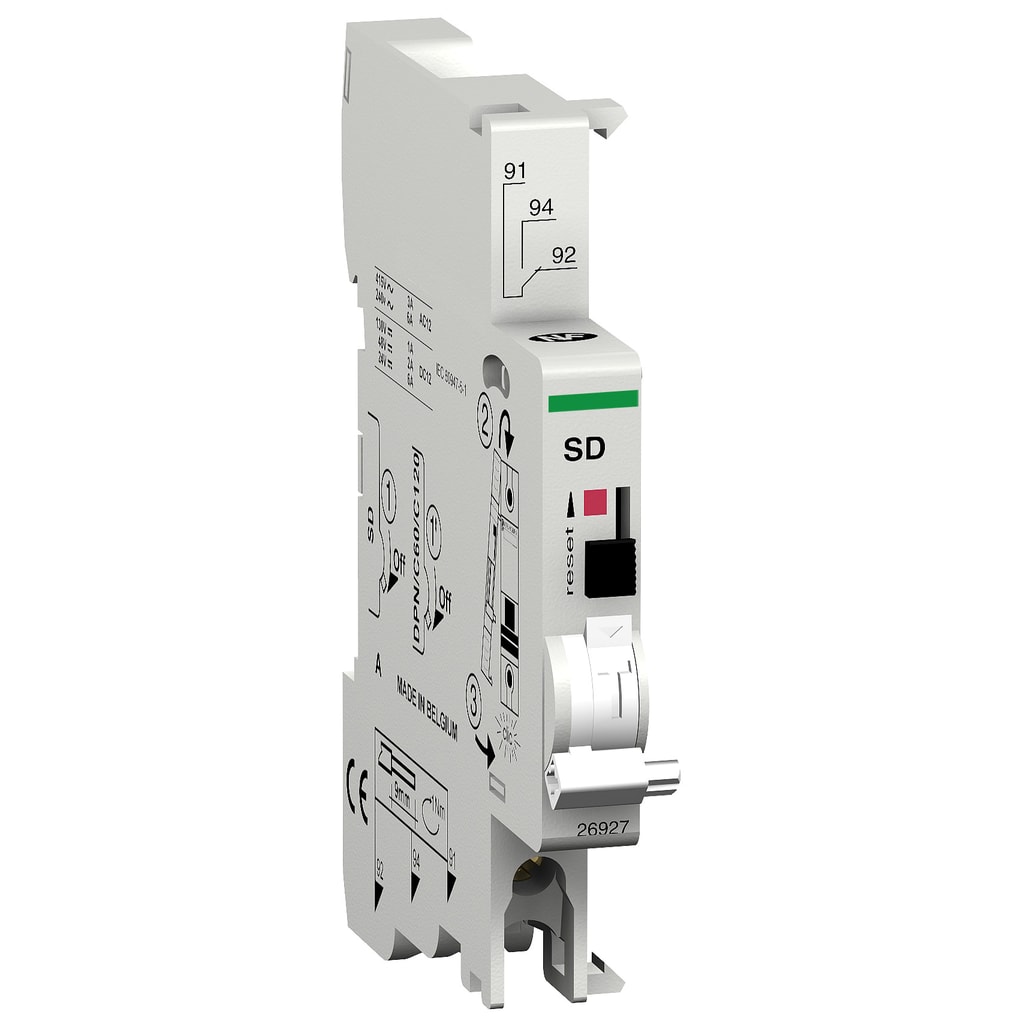

Square-D / Schneider - SQD M9A26927 Multi9 - fault contact
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480639053
Amperage - 3 Amp
Catalog Number - M9A26927
Country of Origin - Belgium
Depths - 73.5 mm
Packaging
1 ea
EAN
03606480639050
Part #
200977
Catalog #
M9A26927
Commercial reference
M9A26927
12-Digit UPC:
606480639053
Amperage:
3 Amp
Catalog Number:
M9A26927
Country of Origin:
Belgium
Depths:
73.5 mm
ERP_productname:
SQD M9A26927 MULTI9 - FAULT CONTACT - 1 SD - 240/415 V AC - 24/130 V DC
Family Brand Name:
Schneider Electric
Heights:
85 mm
Mounting Type:
Fixed
Widths:
9 mm
SoneparProductId:
SKU_US_32048103
This Multi9 SD electric auxiliary is a remote fault indicator contact. It is dedicated to C60 UL/CSA/IEC, iID products. It provides a remote position open/close and/or fault tripping indication of the associated device. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85mm x (D) 73.5mm. Product weight is 30g. The operating temperature is -25.C to + 50.C. The storage temperature is -40.C to + 85.C.
