Square-D / Schneider - SQD M9A26929 Multi9 - double OC or
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480639060
Amperage - 3 Amp
Catalog Number - M9A26929
Depths - 73.5 mm
ERP_productname - SQD M9A26929 MULTI9 SD+OF 24-415VAC 24-130VDC CONTACT
Packaging
1 ea
EAN
03606480639067
Part #
186969
Catalog #
M9A26929
Commercial reference
M9A26929
12-Digit UPC:
606480639060
Amperage:
3 Amp
Catalog Number:
M9A26929
Depths:
73.5 mm
ERP_productname:
SQD M9A26929 MULTI9 SD+OF 24-415VAC 24-130VDC CONTACT
Family Brand Name:
Schneider Electric
Heights:
90 mm
Mounting Type:
Fixed
Widths:
9 mm
SoneparProductId:
SKU_US_158789977

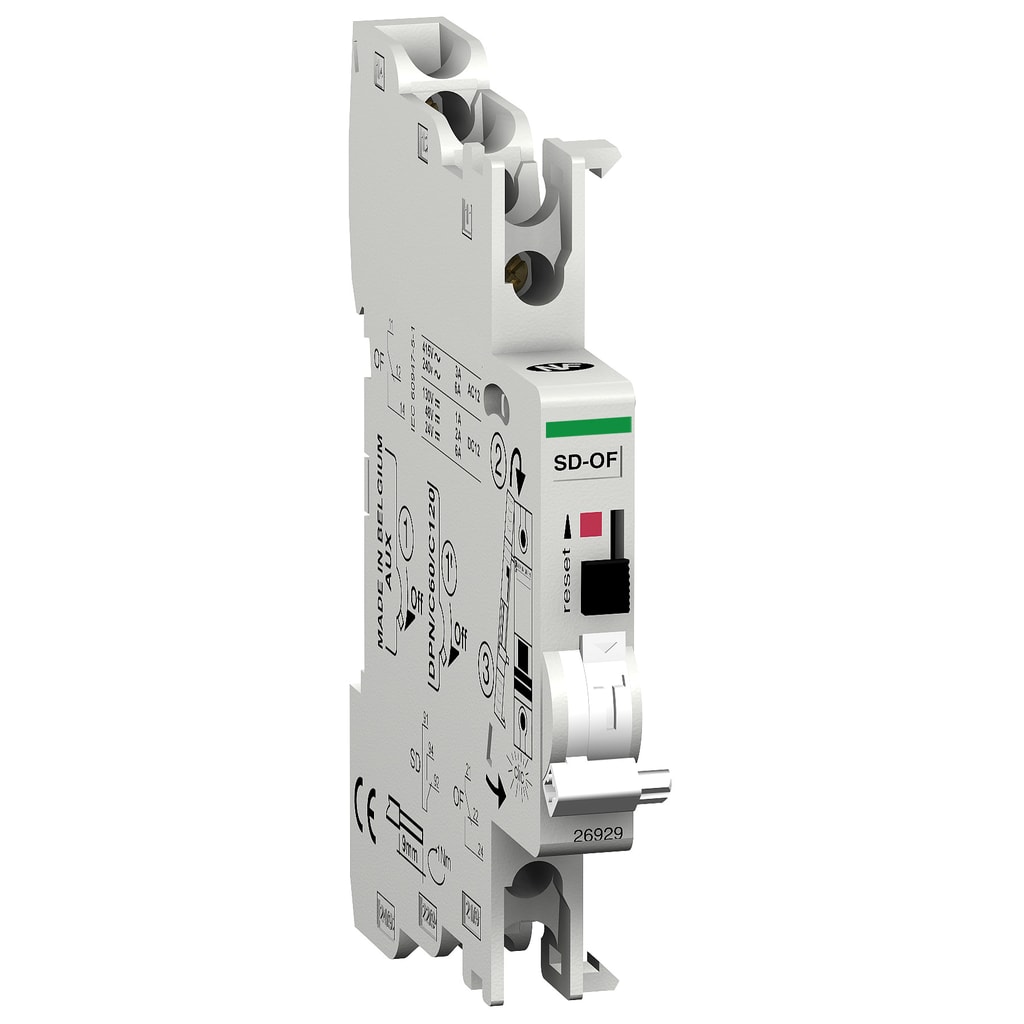

This Multi9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60 UL/CSA/IEC, iID products. It provides a remote position open/close and/or fault tripping indication of the associated device. The In rated operational current is under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 90mm x (D) 73.5mm. Product weight is 38g. The operating temperature is -25.C to + 50.C. The storage temperature is -40.C to + 85.C.
