Square-D / Schneider - SQD M9A26946 Multi9 - shunt trip re

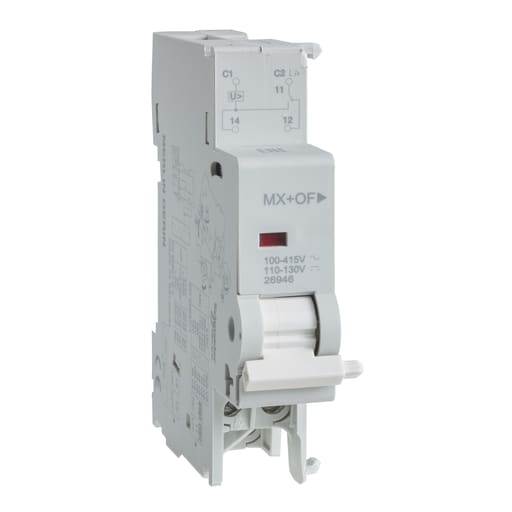

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 110...415VAC or 110...130VDC . It can be mounted on a DIN rail for modular installation. The operating temperature is -25.C to + 50.C. The storage temperature is -40.C to + 85.C. This product complies with EN/IEC 60947-1 standards. Prop 65: WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: M9F11210; M9F42102; M9F11120; M9F11206; M9F11106; M9F11216; M9F14220; M9F42110; M9F11102; M9P22610; M9P22606; M9F11316; M9R11225; M9D11606; M9U21102; M9F12206; M9R81225; M9F11110; M9U21106; M9F11220; M9F11104; M9F11204; M9F11103; M9F11232; M9F11202; M9U21206; M9F11116; M9F11306; M9F11310; M9F12316; M9F11163; M9U21104; 60402; M9F17403; M9U21110; M9F12310; M9F11101; M9F11132; M9F12325; M9F12102; M9F11416; M9F11332; M9F12110; M9F11203; M9F11320; M9U11206; M9F11325; M9F11363; M9U21103; M9U21210; M9F12104; M9F11201; M9F11240; M9F12320; M9F11302; M9F12204; M9F12106; M9F11350; M9F14106; M9F12216; M9F12210; M9F11425; M9F12306; M9F11432; M9F11420; M9F11340; M9U21216; M9U21116; M9U21204; M9F12202; M9F12332; M9F11410; M9U21202; M9F14310; M9F11303; M9F11304; M9F15320; M9U21263; M9U21201; M9F11225; M9F13310; M9U21220; M9U21120; M9F17316; M9F11140; M9U21232; M9F14306; M9F11125; M9F11250; M9F12203; M9F14216; M9F11463; M9F12101; M9U11232; M9F11263; M9F11150; M9U21101; M9F12103; M9F14206; M9F14110; M9U31240; M9F11440; M9U21225; M9F14210; M9F11301; M9U21240; M9F12225; M9F14232; M9U31250; M9U21213; M9F12416; M9U11250; M9F12304; M9F12220; M9F17304; M9F14432; M9F12302; M9U11216; M9U11210; M9U21203; M9F14316; M9U21132; M9F14320; M9U31232; M9U21250; M9F14240; M9U31210; M9U21140; M9U21125; M9F15120; M9F17206; MGN61510; M9U21150; M9U21163; M9F14102; M9F11450; M9F17101; M9F17302; MGN61505; M9F14332; M9U31206; MGN61534; M9U21113; M9F17106; M9U21170; M9F12232; M9U31263; M9F17220; M9U31140; MGN61525; M9U31163; M9F12125; M9U31220; M9F17216; M9F17210; M9F13432; M9F14225; M9F15310; M9F17306; M9F17416; M9F14425; M9F17201; M9U21270; M9F15302; M9F12410; M9F13402; M9F12240; M9F17202; M9F17203; M9F17116; M9U11213; M9F17204; M9U31225; M9F17325; M9F14406; M9F17401; M9F17225; M9F17104; M9F17110; M9F17406; MGN61530; M9F17402; M9F17425; M9F17404; M9F17120; M9F17102; M9F12313; M9F17103; M9F17410; M9F17420; M9F15406; M9F13416; M9F11403; M9F13410; M9F17125; M9F17301; M9F17303; M9F17320
