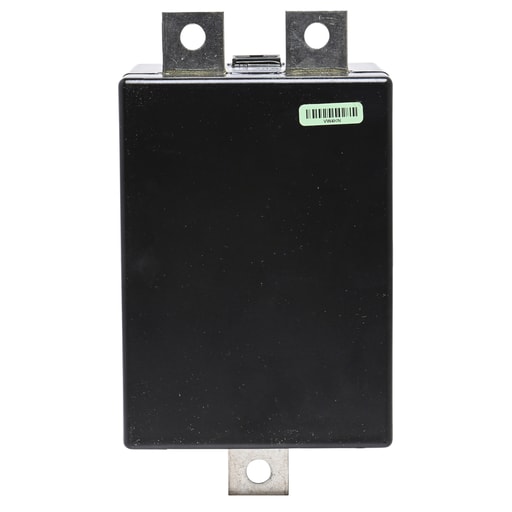

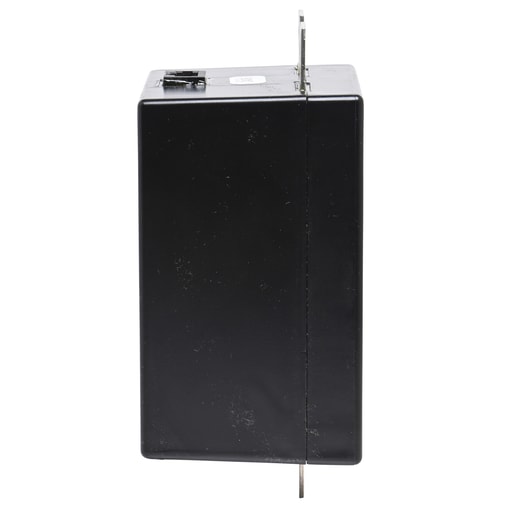

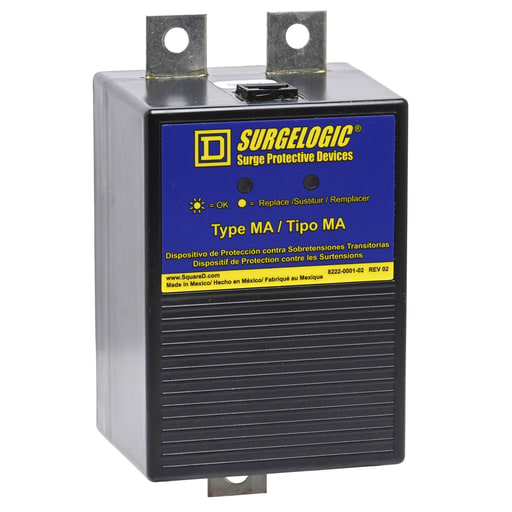

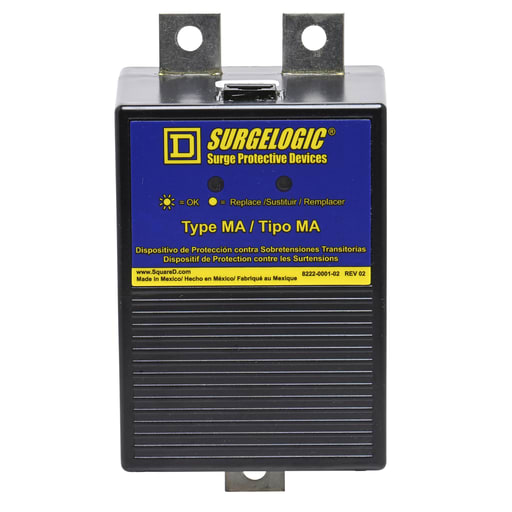

Square-D / Schneider - SQD MA1IMA161 Surge protection modu

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901974963

  • Catalog Number - MA1IMA161

  • Country of Origin - Mexico

  • Depths - 68.3 mm

  • ERP_productname - SQD MA1IMA161 SPD T1 MA MODULE 160KA 120/240V

Packaging

  • 1 ea

EAN

00785901974963

Part #

156140

Catalog #

MA1IMA161

Commercial reference

MA1IMA161

12-Digit UPC:

785901974963

Catalog Number:

MA1IMA161

Country of Origin:

Mexico

Depths:

68.3 mm

ERP_productname:

SQD MA1IMA161 SPD T1 MA MODULE 160KA 120/240V

Enclosure:

1

Enclosure Material:

Plastic

Family Brand Name:

Square D

Heights:

158.8 mm

NEMA Size:

1

Number of Phases:

1 Phase

Tc Connection:

Terminals

Voltage:

120/240 Volt

Widths:

82.8 mm

SoneparProductId:

SKU_US_29999890

Surgelogic™ Type MA_IBA systems are module assembelies intended for use on the line side of the service enterance and as replacements for Type EBA surgical protection devices. Being modular in design, this unit is able to provide a surge current rating of 240,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. With several optional features (remote monitor, flush mounts, integral switches and EMI/RFI filtering) these SPDs use the WYE system to provide exeptional versatility. This product is UL and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
