Square-D / Schneider - SQD METSEPM89M2600 PowerLogic PM800
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480701996
Applications - Optional expansion module
Catalog Number - METSEPM89M2600
Country of Origin - USA
Depths - 90.5 mm
Packaging
1 ea
EAN
03606480701993
Part #
188160
Catalog #
METSEPM89M2600
Commercial reference
METSEPM89M2600
12-Digit UPC:
606480701996
Applications:
Optional expansion module
Catalog Number:
METSEPM89M2600
Country of Origin:
USA
Depths:
90.5 mm
ERP_productname:
SQD METSEPM89M2600 PM8000-DIGITAL-I/O-MOD,-2R-OUT,6-D- IN
Family Brand Name:
Schneider Electric
Heights:
90.5 mm
Size:
3.56 in
Sub Brand:
POWERLOGIC,POWERLOGIC POWERLOGIC PM8000-POWERLOGIC POWERLOGIC ION7400
Type:
I/O module
Widths:
22 mm
SoneparProductId:
SKU_US_70010892

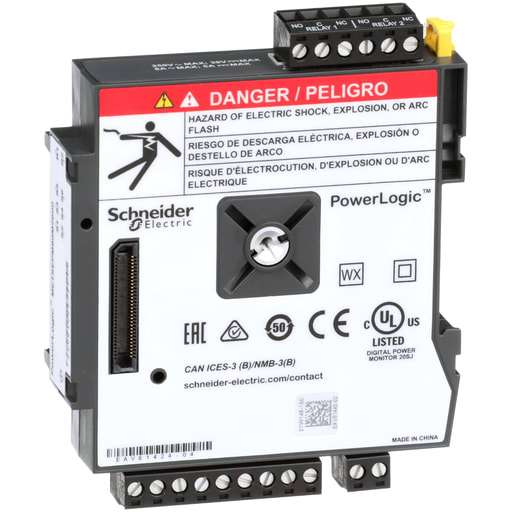

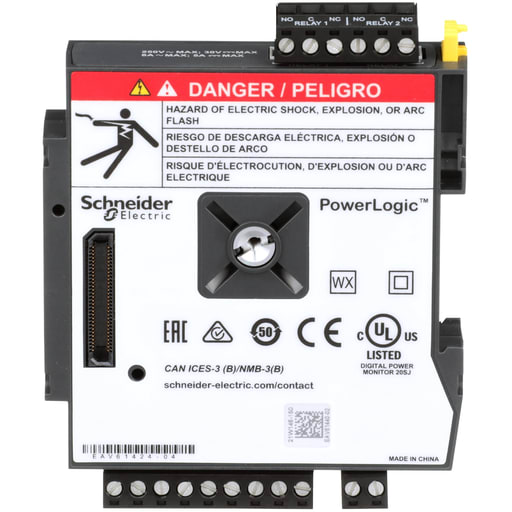

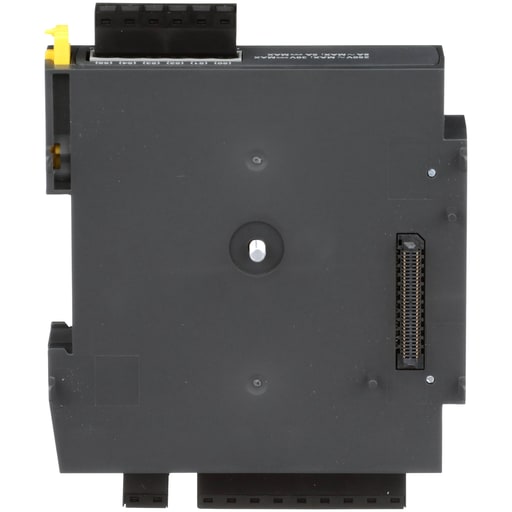

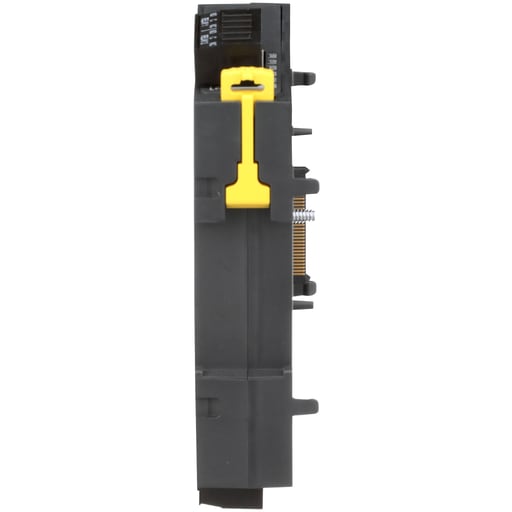

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
