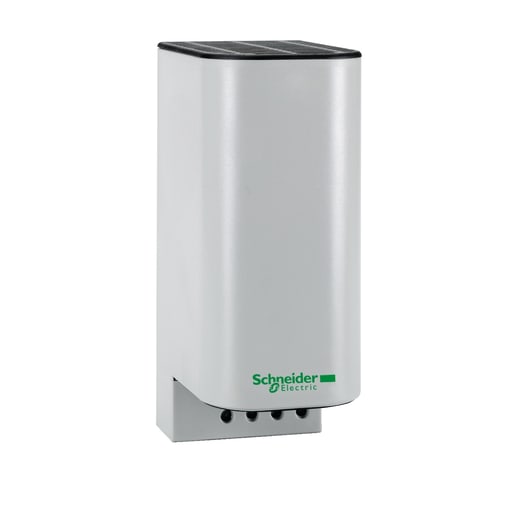

Square-D / Schneider - SQD NSYCR150WU2C ClimaSys PTC heati
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480152354
Applications - 35 mm DIN rail
Catalog Number - NSYCR150WU2C
Country of Origin - Spain
Depths - 90 mm
Packaging
1 ea
EAN
03606480152351
Part #
384916
Catalog #
NSYCR150WU2C
Commercial reference
NSYCR150WU2C
12-Digit UPC:
606480152354
Applications:
35 mm DIN rail
Catalog Number:
NSYCR150WU2C
Country of Origin:
Spain
Depths:
90 mm
ERP_productname:
SQD NSYCR150WU2C CLIMASYS PTC HEATING RESISTANCE 150W,110-250V INSULATE
Family Brand Name:
Schneider Electric
Heights:
150 mm
Input Voltage:
...240 V
Material:
Body Extruded Aluminium,Cover Plastic
Size:
EXTERNAL 150 MM,EXTERNAL 60 MM,EXTERNAL 90 MM
Sub Brand:
CLIMASYS CR
Type:
Resistance heater
Widths:
60 mm
SoneparProductId:
SKU_US_30072360
ClimaSys PTC heating resistance insulate. 150W, 110-250V AC, 50/60 Hz. (-40 to 70).C temp for operation. Electrical connection is 4 screw terminals 2.5 mm.. 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller. Cross Sell Products: NSYCAG125LPF; NSYCCOTHI; NSYCCOHYT230VID; NSYCVF85M230PF
