Square-D / Schneider - SQD NSYCRN66300 PanelSeT CRN plain

CopyCopy
Square-D / Schneider - SQD NSYCRN66300 PanelSeT CRN plain

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480211969

  • Applications - Multi-purpose

  • Catalog Number - NSYCRN66300

  • Color - Gray RAL 7035)

  • Country of Origin - Spain

Packaging

  • 1 ea

EAN

03606480211966

Part #

443928

Catalog #

NSYCRN66300

Commercial reference

NSYCRN66300

12-Digit UPC:

606480211969

Applications:

Multi-purpose

Catalog Number:

NSYCRN66300

Color:

Gray RAL 7035)

Country of Origin:

Spain

ERP_productname:

SQD NSYCRN66300 PANELSET CRN PLAIN DOOR W/O MOUNT.PLATE. H600XW600XD300 IP66 IK10 RAL7035..

Family Brand Name:

Schneider Electric

Heights:

600 mm

Material:

Steel

Size:

300 MM,600 MM,600 MM

Sub Brand:

SPACIAL CRN

Type:

COMPACT ENCLOSURE,WALL-MOUNTING

Widths:

600 mm

SoneparProductId:

SKU_US_31564793

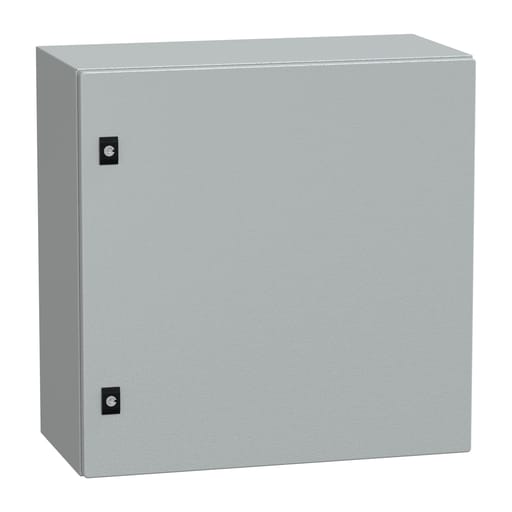

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 600 mm x (H) 600 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified. Compatible Products: NSYTLCRND; NSYMM66; NSYSDCR300; NSYMD66; NSYVDM11UP; NSYPFCR; NSYPFCX; NSYSFPSC60; NSYSPS3100SD; NSYSPF6200; NSYCOCN80; NSYTJ6030 - Cross Sell Products: NSYLAMLDF; XB4BVB4; NSYCVF85M230PF; NSYCAG125LPF; NSYCCOTHO; NSYCCOHYT230VID; NSYCR100WU2; C16F3TM160; LV434001; LUB12; GV2L32; LC1D32M7; METSEION92040; SXWASB24H10001; XB4BS8446 - Spare Part Products: NSYDCRN66; NSYBICRN; NSYSWMEL; NSYSWMBP; NSYADG2M
