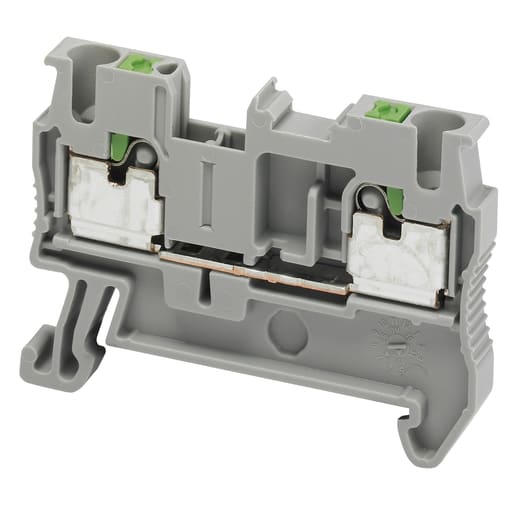

Square-D / Schneider - SQD NSYTRP22 Terminal block, Linerg

Essential specifications

12-Digit UPC - 606480533122
Amperage - 24 Amp
Applications - LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK
Catalog Number - NSYTRP22
Color - Gray

Packaging

1 ea

EAN

03606480533129

Part #

375124

Catalog #

NSYTRP22

Commercial reference

NSYTRP22

12-Digit UPC:

606480533122

Amperage:

24 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

Catalog Number:

NSYTRP22

Color:

Gray

Country of Origin:

China

ERP_productname:

SQD NSYTRP22 TERMINAL BLOCK, LINERGY TR, PUSH-IN TYPE, FEED THROUGH, 2 POINTS, 2.5MM?, GREY, SET OF 50

Family Brand Name:

Schneider Electric

Heights:

36.5 mm

Length:

48.5 mm

Material:

Chromium-nickel Steel,Copper Alloy,Polyamide

Mounting Type:

Clip-On

Size:

36.5 MM,48.5 MM,5.2 MM

Sub Brand:

LINERGY,TRP

Tc Connection:

1 X PUSH-IN UPSTREAM-1 X PUSH-IN DOWNSTREAM

Type:

SPACIAL ENCLOSURES,PASSTHROUGH,TERMINAL BLOCK

Voltage:

600 Volt

Widths:

5.2 mm

Wire Size:

0.14-2.5 MMA., FLEXIBLE WITHOUT CABLE END-0.14-4 MMA., SOLID WITH CABLE END-0.2-2.5 MMA., FLEXIBLE WITH CABLE END-0.2-2.5 MMA., SOLID WITHOUT CABLE END,2.5 MMA.

SoneparProductId:

SKU_US_30448399

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm. nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (VDE, LR, cURus, IEC-Ex, ATEX, EAC, GL, CSA). It is compliant with Green Premium (RoHS/REACH). Compatible Products: NSYTRAAB35; NSYTRAB510; NSYTRP22AR; NSYTRAABV35; NSYTRAB520; NSYTRP22BL; NSYTRAB530; NSYTRACR22; NSYTRP22PE; NSYTRAB540; NSYTRABF540; NSYTRAPR42; NSYTRAB550; NSYTRABF550; NSYTRAL22; NSYTRABFPV5; NSYTRAL23; NSYTRAL24; NSYTRAB580; NSYTRAL25; NSYTRAB590; NSYTRAL210; NSYTRAL220; NSYTRAB5L1N; NSYTRAL210GR; NSYTRAATM1; NSYTRABPV5; NSYTRAATP1; NSYTRAFT; NSYTRASB4; NSYSDR200BD; NSYTRABCV23
