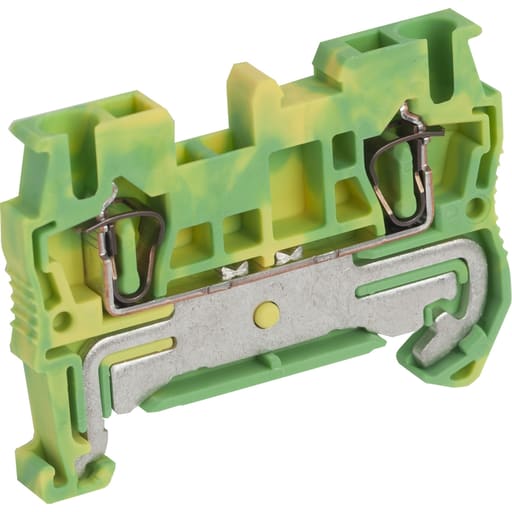

Square-D / Schneider - SQD NSYTRR22PE Terminal block, Line

Essential specifications

12-Digit UPC - 606480532538
Applications - LINERGY,SPACIAL ENCLOSURES,TERMINAL BLOCK
Catalog Number - NSYTRR22PE
Color - Green-yellow
Conductor Size - 0.00 in. (2.5 mm.)

Packaging

1 ea

EAN

03606480532535

Part #

103815

Catalog #

NSYTRR22PE

Commercial reference

NSYTRR22PE

12-Digit UPC:

606480532538

Applications:

LINERGY,SPACIAL ENCLOSURES,TERMINAL BLOCK

Catalog Number:

NSYTRR22PE

Color:

Green-yellow

Conductor Size:

0.00 in. (2.5 mm.)

Country of Origin:

Germany

ERP_productname:

SQD NSYTRR22PE SPRING TERMINAL, GROUND, 2PTS, 2,5MM

Family Brand Name:

Schneider Electric

Heights:

36.5 mm

Length:

48.5 mm

Material:

Polyamide

Mounting Type:

Clip-On

Size:

1.44 in

Sub Brand:

TRR;Linergy

Tc Connection:

1 X SPRING TERMINAL UPSTREAM-1 X SPRING TERMINAL DOWNSTREAM

Type:

Spacial enclosures;Terminal block;Protective earth

Widths:

5.2 mm

Wire Size:

0.00 in. (2.5 mm.)

SoneparProductId:

SKU_US_30038854

Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 2.5 mm. nominal cross section. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH). Compatible Products: NSYTRAAB35; NSYTRAB510; NSYTRR22; NSYTRAABV35; NSYTRAB520; NSYTRR22BL; NSYTRAB530; NSYTRACR22; NSYTRAB540; NSYTRABF540; NSYTRAPR42; NSYTRAATM1; NSYTRAB550; NSYTRABF550; NSYTRAATP1; NSYTRABFPV5; NSYTRAFT; NSYTRAB580; NSYTRACSR2; NSYTRAB590; NSYTRASB4; NSYSDR200BD; NSYTRABCV23; NSYTRAB5L1N; NSYTRABPV5
