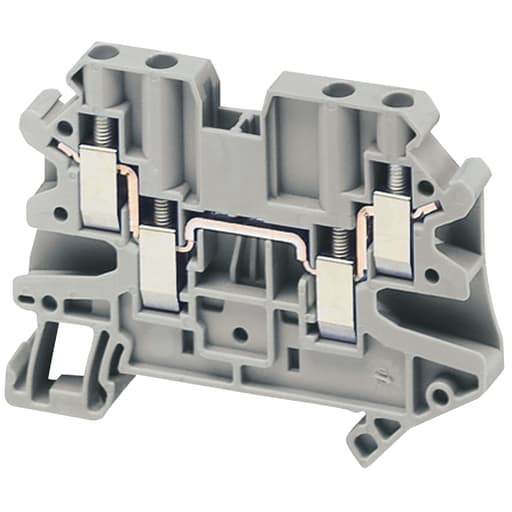

Square-D / Schneider - SQD NSYTRV44 Terminal block, Linerg

CopyCopy
Square-D / Schneider - SQD NSYTRV44 Terminal block, Linerg

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 606480532002

  • Amperage - 32 Amp

  • Applications - LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

  • Catalog Number - NSYTRV44

  • Color - Gray

Packaging

  • 1 ea

EAN

03606480532009

Part #

108449

Catalog #

NSYTRV44

Commercial reference

NSYTRV44

12-Digit UPC:

606480532002

Amperage:

32 Amp

Applications:

LINERGY,SPACIAL ENCLOSURES,CONNECTION ACCESSORY,TERMINAL BLOCK

Catalog Number:

NSYTRV44

Color:

Gray

Conductor Size:

0.01 in. (4 mm.)

Country of Origin:

Germany

ERP_productname:

SQD NSYTRV44 SCREW TERMINAL, 4PTS, 4MM GREY

Family Brand Name:

Schneider Electric

Heights:

47.5 mm

Length:

65.4 mm

Material:

Chromium-nickel Steel,Copper Alloy,Polyamide

Mounting Type:

Clip-On

Size:

1.87 in

Sub Brand:

TRV;Linergy

Tc Connection:

2 X SCREW TERMINAL DOWNSTREAM M3)-2 X SCREW TERMINAL UPSTREAM M3)

Type:

Spacial enclosures;Terminal block;Passthrough

Voltage:

150 Volt

Widths:

6.2 mm

Wire Size:

0.01 in. (4 mm.)

SoneparProductId:

SKU_US_30810849

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm. nominal cross section. The rated operational voltage is 150V conforming to cURus, 500V conforming to EN/IEC 60947-7-1 and 352V conforming to ATEX Exe II Ex II 2 GD. The rated current is 32A conforming to EN/IEC 60947-7-1, 30A conforming to CSA/cURus and 29A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 .C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NSYTRAAB35; NSYTRAB610; NSYTRV44BL; NSYTRAABV35; NSYTRAB620; NSYTRV44PE; NSYTRAB630; NSYTRAC24; NSYTRAB640; NSYTRAL42; NSYTRAB650; NSYTRAL43; NSYTRAL44; NSYTRAL45; NSYTRAB680; NSYTRAL410; NSYTRAL420; NSYTRAATM1; NSYTRAATP1; NSYTRAB61100; NSYTRAB6L1N; NSYTRAFT; NSYTRABPV6; NSYTRACS4; NSYTRASB4; NSYSDR200BD; NSYTRABCV35
