Square-D / Schneider - SQD PCSPCTFCL16001R AccuSine+ curre
Login or create an account to check prices & order
Essential specifications
Catalog Number - PCSPCTFCL16001R
Depths - 38.1 mm
ERP_productname - SQD PCSPCTFCL16001R ACCUSINE+ CURRENT TRANSFORMER - 1600/1 - RECTANGULAR SPLIT CORE - 69.8X168.2MM
Family Brand Name - Square D
Heights - 168.2 mm
Packaging
1 ea
EAN
03606480891823
Part #
367185
Catalog #
PCSPCTFCL16001R
Commercial reference
PCSPCTFCL16001R
Catalog Number:
PCSPCTFCL16001R
Depths:
38.1 mm
ERP_productname:
SQD PCSPCTFCL16001R ACCUSINE+ CURRENT TRANSFORMER - 1600/1 - RECTANGULAR SPLIT CORE - 69.8X168.2MM
Family Brand Name:
Square D
Heights:
168.2 mm
Impedance:
15 ohm
Widths:
139.7 mm
SoneparProductId:
SKU_US_504379899

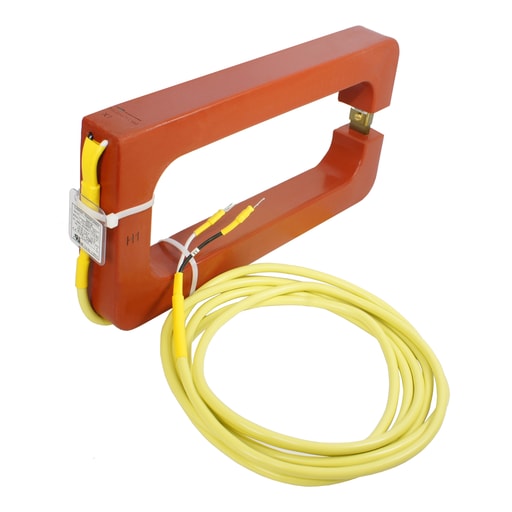

This rectangular split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 1600A and a secondary rating of 1A. The opening size of this coil is 69.8mm by 168.2mm. Measurement accuracy of the primary rating is 4% from 200A to 300A, 3% from 400A to 500A, then 2% from 600A to 800A and 1% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
