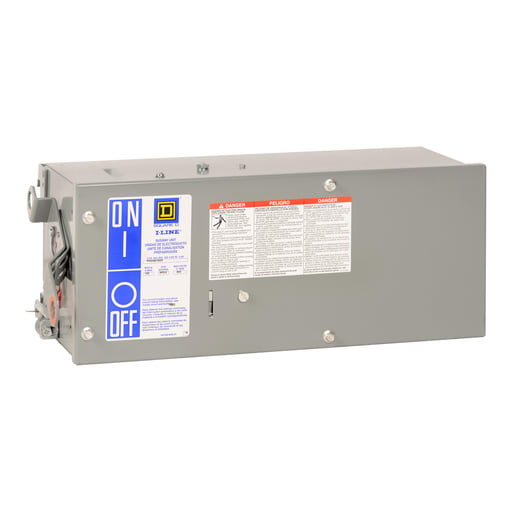

Square-D / Schneider - SQD PHD36125GN Plug-in unit, I-Line
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901565734
Applications - 3 phase;4-wire
Catalog Number - PHD36125GN
Country of Origin - USA
ERP_productname - SQD PHD36125GN 125A H-FRAME PLUG IN UNIT
Packaging
1 ea
EAN
00785901565734
Part #
189302
Catalog #
PHD36125GN
Commercial reference
PHD36125GN
12-Digit UPC:
785901565734
Applications:
3 phase;4-wire
Catalog Number:
PHD36125GN
Country of Origin:
USA
ERP_productname:
SQD PHD36125GN 125A H-FRAME PLUG IN UNIT
Family Brand Name:
Square D
Number of Phases:
3 Phase
Type:
Section
Voltage:
277/480 Volt
SoneparProductId:
SKU_US_32308101
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug in unit is for 125A, 600VAC, 3 phase, 4 wire H frame circuit breakers. This circuit breaker has a D interrupting trip rating. This unit includes a ground and neutral. I-Line busway is UL listed and CSA certified.
