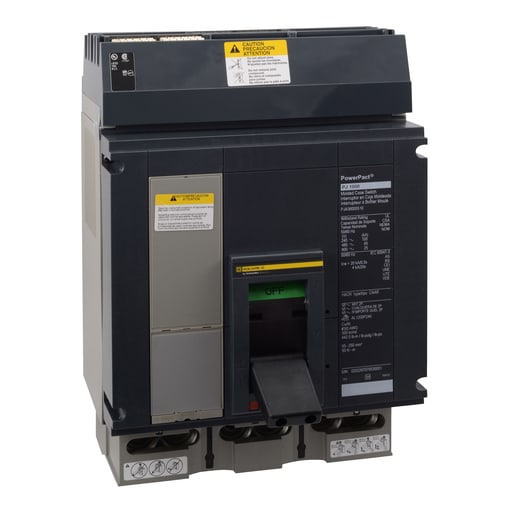

Square-D / Schneider - SQD PJA36000S80 Automatic switch, P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901731054
Amperage - 800 Amp
Catalog Number - PJA36000S80
Country of Origin - USA
Depths - 14.49 Inch
Packaging
1 ea
EAN
00785901731054
Part #
108426
Catalog #
PJA36000S80
Commercial reference
PJA36000S80
12-Digit UPC:
785901731054
Amperage:
800 Amp
Catalog Number:
PJA36000S80
Country of Origin:
USA
Depths:
14.49 Inch
ERP_productname:
SQD PJA36000S80 AUTOMATIC MOLDED CASE SWITCH 600V 800A
Family Brand Name:
Square D
Heights:
16.24 Inch
Mounting Type:
I-Line
Size:
14.49 in
Tc Connection:
AWG 3/0...500 KCMIL ALUMINIUM/COPPER)3,LUGS LOAD-I-LINE CONNECTION LINE
Type:
Automatic switch
Voltage:
600 Volt
Widths:
16.54 in
SoneparProductId:
SKU_US_32163084
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 800A, 3 pole, automatic switch has a short circuit withstand current rating of 25kA at 600VAC. It has an ABC phase connection. PowerPacT P automatic switches comply to UL and CSA standards. Compatible Products: S29450
