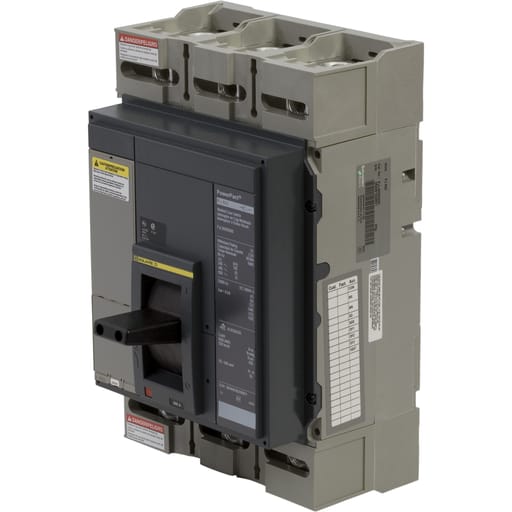

Square-D / Schneider - SQD PKL36000S80 Automatic switch, P
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901944720
Amperage - 800 Amp
Catalog Number - PKL36000S80
Circuit Breaker Type - P-Frame
Country of Origin - USA
Packaging
1 ea
EAN
00785901944720
Part #
306317
Catalog #
PKL36000S80
Commercial reference
PKL36000S80
12-Digit UPC:
785901944720
Amperage:
800 Amp
Catalog Number:
PKL36000S80
Circuit Breaker Type:
P-Frame
Country of Origin:
USA
Depths:
14.49 Inch
ERP_productname:
SQD PKL36000S80 AUTOMATIC SWITCH, POWERPACT P, 800A, 3 POLE, 600VAC, 50KA, LUGS, MAGNETIC
Family Brand Name:
Square D
Heights:
16.24 Inch
Length:
14.49 Inch
Mounting Type:
Unit Mount
Number of Poles:
3 Pole
Type:
Automatic switch
Voltage:
600 Volt
Widths:
16.54 in
SoneparProductId:
SKU_US_29787068
PowerPacT P-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the P-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT P-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT P, 800A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT P automatic switches comply to UL and CSA standards. Compatible Products: S29450
