Square-D / Schneider - SQD QO115PAF Mini circuit breaker,

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901778356

  • Catalog Number - QO115PAF

  • Circuit Breaker Type - Combination ARC-fault

  • Control Circuit Voltage - 120 V

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901778356

Part #

196105

Catalog #

QO115PAF

Commercial reference

QO115PAF

12-Digit UPC:

785901778356

Catalog Number:

QO115PAF

Circuit Breaker Type:

Combination ARC-fault

Control Circuit Voltage:

120 V

Country of Origin:

Mexico

Depths:

104.14 mm

ERP_productname:

SQD QO115PAF QO MINIATURE CIRCUIT BREAKER 120V 15A

Family Brand Name:

Square D

Heights:

69.08 mm

Mounting Type:

Plug-In

Voltage:

600 Volt

Widths:

19.05 mm

SoneparProductId:

SKU_US_221361830

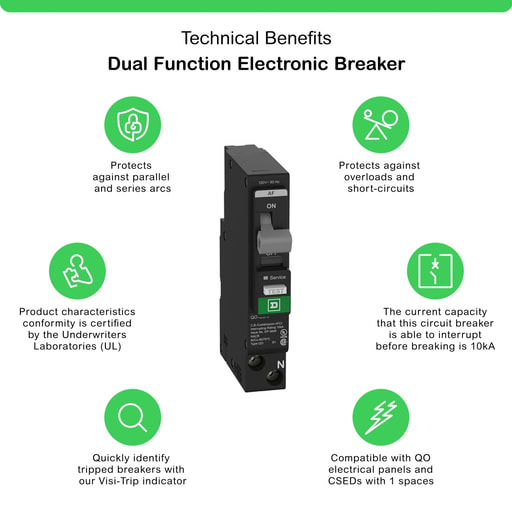

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a combination arc fault with plug on neutral connection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: QO124M100P; QO142L225PG; QO142M200P; QOADV1PAF; QO124L125PG; QO130M200P; QO130L200PG; QO130M200PRB; QO130L200PQG; QO142M200PQ; QO130L200PGRB; QO154L225PG; QO124L125PQG
