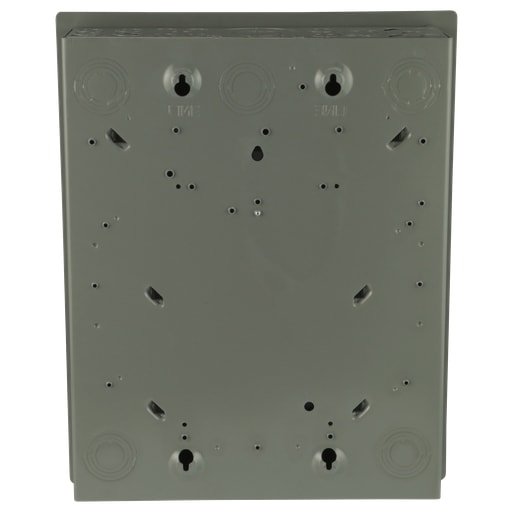

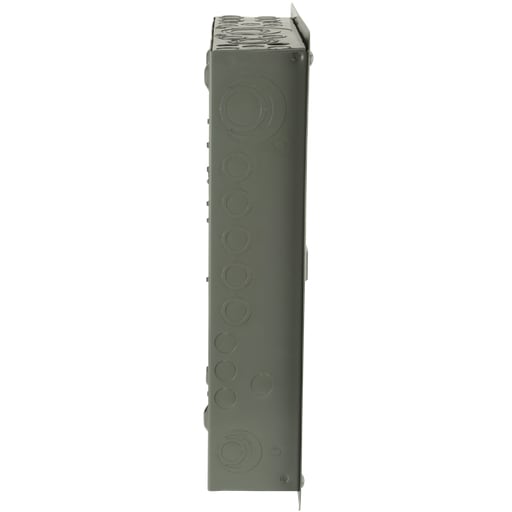

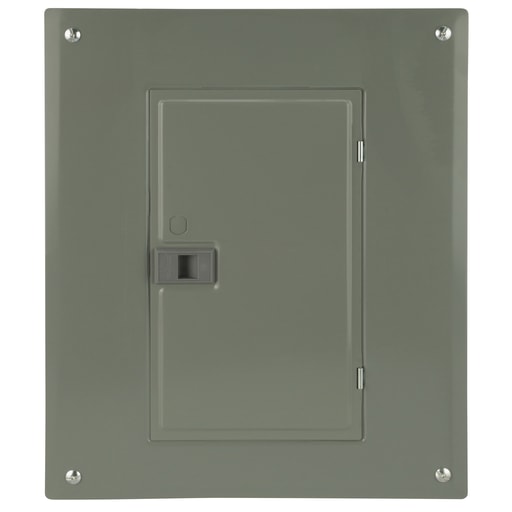

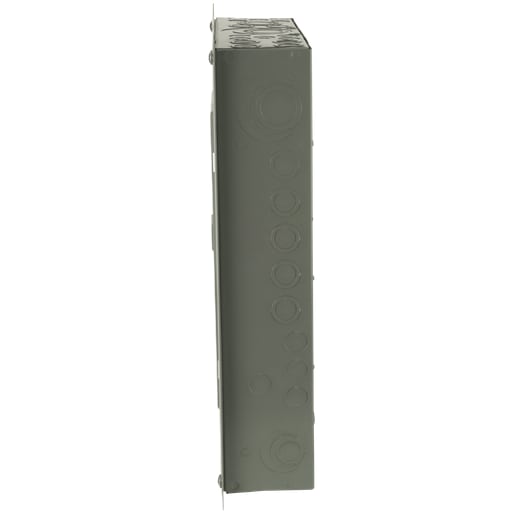

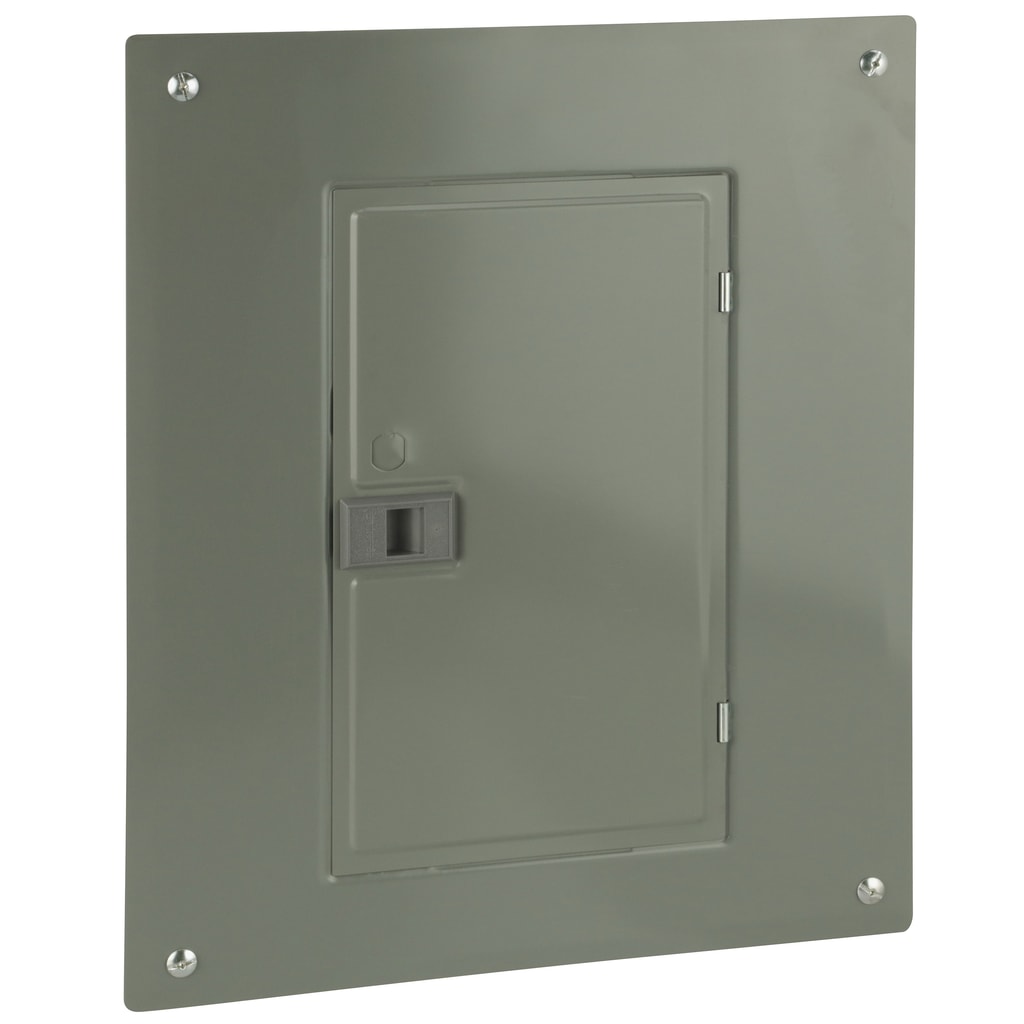

Square-D / Schneider - SQD QO116M100PC Load center, QO, 1
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901085881
Amperage - 100 Amp
Catalog Number - QO116M100PC
Country of Origin - USA
Current - 100 Amp
Packaging
1 ea
EAN
00785901085881
Part #
219267
Catalog #
QO116M100PC
Commercial reference
QO116M100PC
12-Digit UPC:
785901085881
Amperage:
100 Amp
Catalog Number:
QO116M100PC
Country of Origin:
USA
Current:
100 Amp
Depths:
3-3/4 Inch
ERP_productname:
SQD QO116M100PC QO PLUG-ON NEUT LC N1 1PH MB 240V 100A
Enclosure:
1
Family Brand Name:
Square D
Heights:
17.92 Inch
NEMA Size:
1
Number of Circuits:
24
Number of Phases:
1 Phase
Short Circuit Current:
22 kA
Widths:
14.25 in
SoneparProductId:
SKU_US_155225364
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 16 spaces and 24 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, combination cover, and is UL rated.
