Square-D / Schneider - SQD QO124L125PQGCVP Load center, QO

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901626428

  • Amperage - 125 Amp

  • Catalog Number - QO124L125PQGCVP

  • Conductor Size - 6-2/0 AWG

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901626428

Part #

222453

Catalog #

QO124L125PQGCVP

Commercial reference

QO124L125PQGCVP

12-Digit UPC:

785901626428

Amperage:

125 Amp

Catalog Number:

QO124L125PQGCVP

Conductor Size:

6-2/0 AWG

Country of Origin:

USA

Current:

125 Amp

Depths:

95 mm

ERP_productname:

SQD QO124L125PQGCVP LOAD CENTER VALUE PK QWIK GRIP PLUG ON NEUTRAL N1 1PH ML 125A 24SP

Enclosure:

1

Enclosure Material:

Steel

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

531 mm

Interrupt Rating:

10 kAIC

Material:

Copper

NEMA Size:

1

Number of Circuits:

24

Number of Phases:

1 Phase

Short Circuit Current:

10 kA

Type:

Load Center

Voltage:

120/240 Volt

Widths:

362 mm

Wire Size:

AWG 6...AWG 2/0 aluminium/copper NULL

SoneparProductId:

SKU_US_25493247

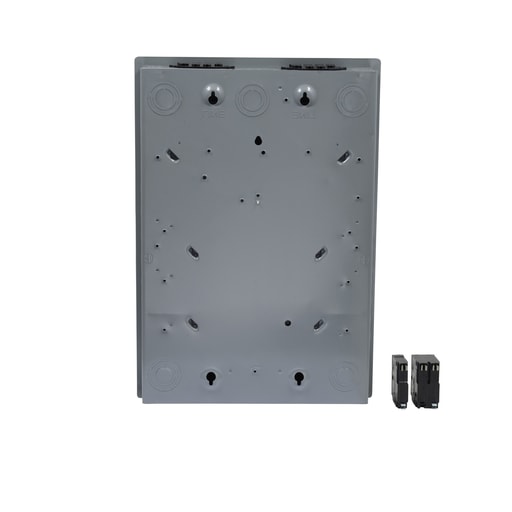

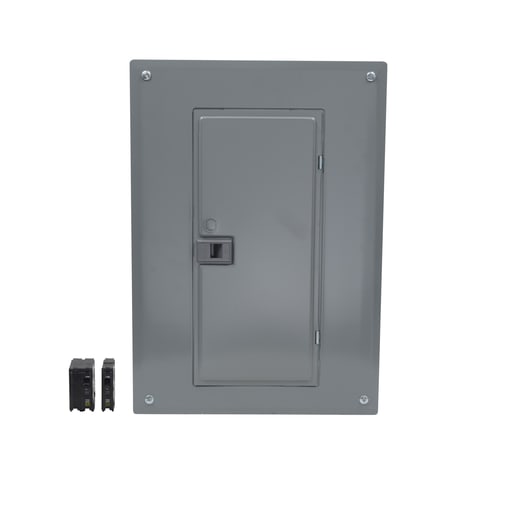

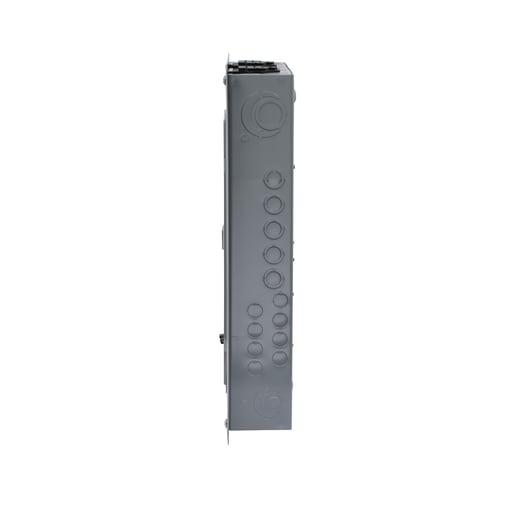

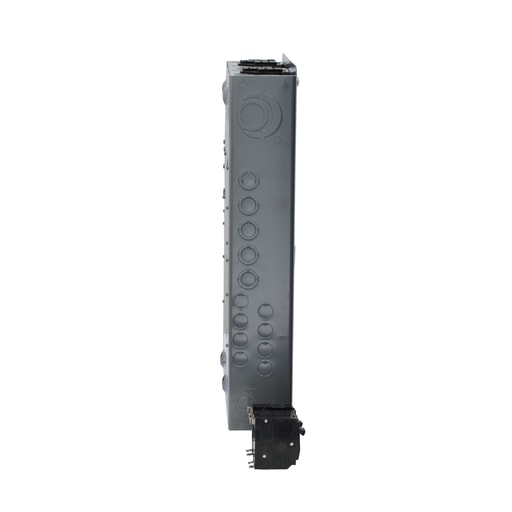

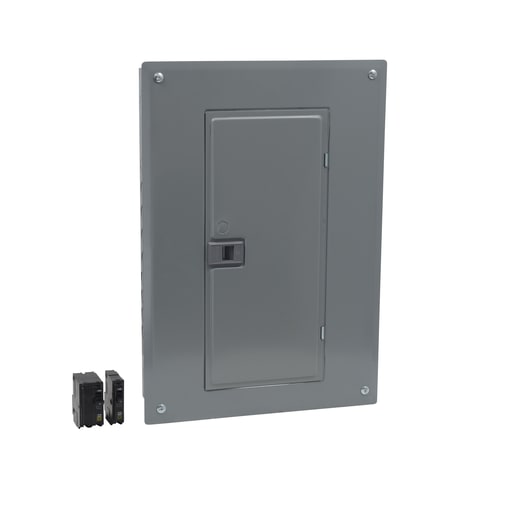

QO® Circuit Breaker Load Centers, QO124L125PQGCVP, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 24 circuits. This system provides 125A convertible main lugs in a NEMA 1 enclosure. It also includes plug on neutral, Qwik-grip, and is UL rated. This product is a value pack.
