Square-D / Schneider - SQD QO140M200PT2 Load center, QO, 1

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901616764

  • Catalog Number - QO140M200PT2

  • Country of Origin - USA

  • Current - 200 Amp

  • Depths - 95 mm

Packaging

  • 1 ea

EAN

00785901616764

Part #

219353

Catalog #

QO140M200PT2

Commercial reference

QO140M200PT2

12-Digit UPC:

785901616764

Catalog Number:

QO140M200PT2

Country of Origin:

USA

Current:

200 Amp

Depths:

95 mm

ERP_productname:

SQD QO140M200PT2 QO140M200P WITH 2-PK23GTA

Enclosure:

1

Family Brand Name:

Square D

Heights:

858 mm

NEMA Size:

1

Number of Circuits:

40

Number of Phases:

1 Phase

Short Circuit Current:

22 kA

Short Circuit Current Ratng:

22 kA

Widths:

362 mm

SoneparProductId:

SKU_US_157882083

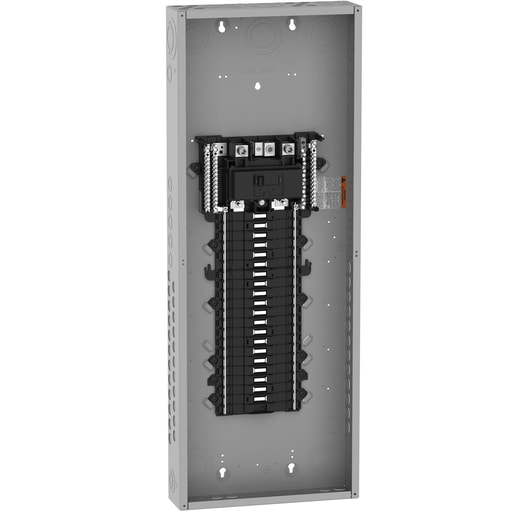

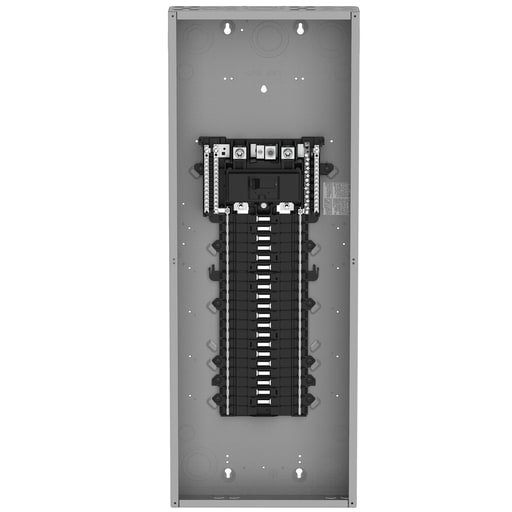

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 40 spaces and 40 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral, 2 ground bars, and is UL rated. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK23GTA; QO2175SB; QOC40UF; QO250PSPD; QOC40US; HEPD25; HEPD50; QOC40UFW; HEPD80; HEPD25MKF; HEPD58MKF
