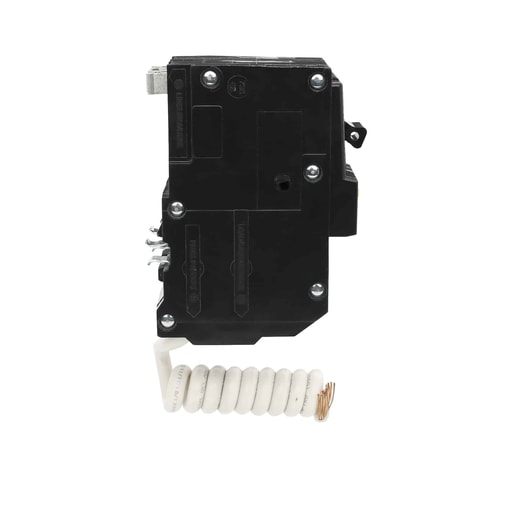

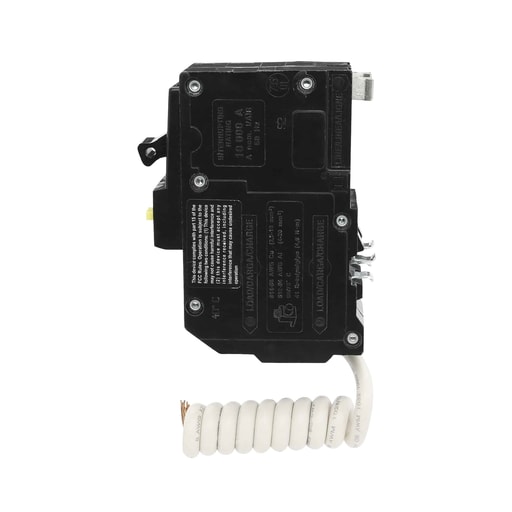

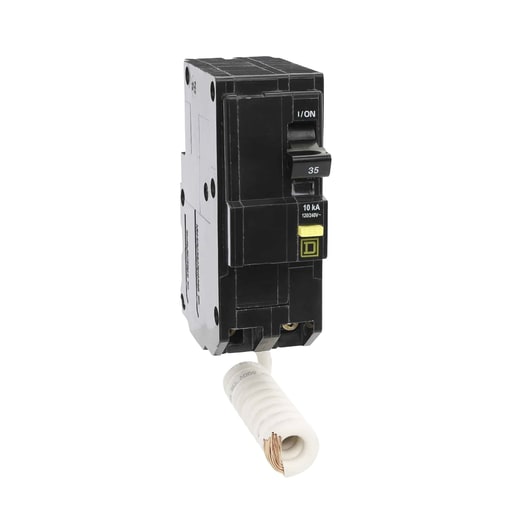

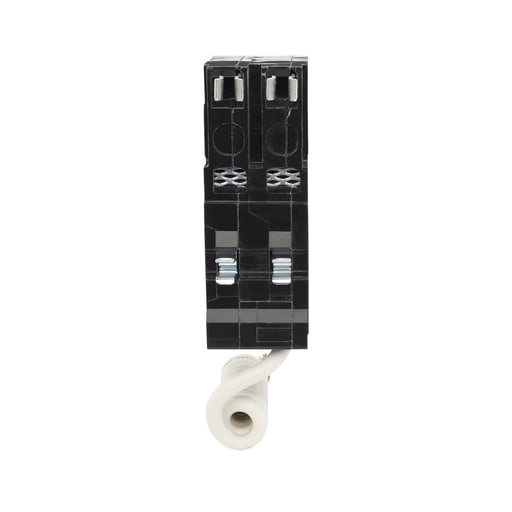

Square-D / Schneider - SQD QO235GFI Mini circuit breaker,

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901508793

  • Amperage - 35 Amp

  • Catalog Number - QO235GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901508793

Part #

138219

Catalog #

QO235GFI

Commercial reference

QO235GFI

12-Digit UPC:

785901508793

Amperage:

35 Amp

Catalog Number:

QO235GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Country of Origin:

Mexico

Current:

35 Amp

Depths:

74 mm

ERP_productname:

SQD QO235GFI

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-In

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

38 mm

SoneparProductId:

SKU_US_198531576

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 35A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: QO1HT; QO324L125G; QO1PL; QO342L225G; QOTHT; QO342MQ200; QO3HT; HLO1; QO130L200PG; QOHPL; SN12125; QO1HPL; QO1PA; QO2PAF; QO142L225PG; QO2125SL; QO2DTI; QO142M200P; QO2DTIM; QO1816M200FTRB; QOMB1
