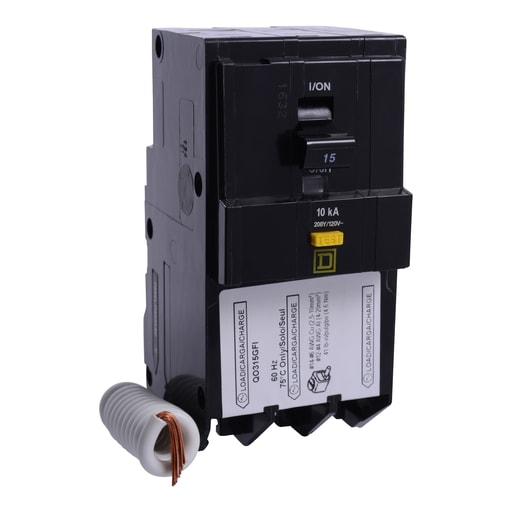

Square-D / Schneider - SQD QO315GFI Mini circuit breaker,

CopyCopy
Square-D / Schneider - SQD QO315GFI Mini circuit breaker,

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901652311

  • Amperage - 15 Amp

  • Applications - NOT RATED

  • Catalog Number - QO315GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

Packaging

  • 1 ea

EAN

00785901652311

Part #

145102

Catalog #

QO315GFI

Commercial reference

QO315GFI

12-Digit UPC:

785901652311

Amperage:

15 Amp

Applications:

NOT RATED

Catalog Number:

QO315GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Mexico

Current:

15 Amp

Depths:

74 mm

ERP_productname:

SQD QO315GFI MINIATURE CIRCUIT BREAKER 120/240V 15A

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-In

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

AWG 14...AWG 8 COPPER-AWG 12...AWG 8 ALUMINIUM,PRESSURE PLATE

Type:

MINIATURE CIRCUIT-BREAKER

Voltage:

120 Volt

Widths:

57 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_29519810

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 15A at 208Y/120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: HLO1; QO142M200P; QO142L225PG; QO3HT; GFI2PA; QO1HPL; QO342MQ200; QO1PL; QO1816M200FTRB; QO2DTI; QO130L200PG; QO2DTIM; QO816L100RB; QOGFI2PAF; QO342L225G; QO24L70RB; QO324L125G
