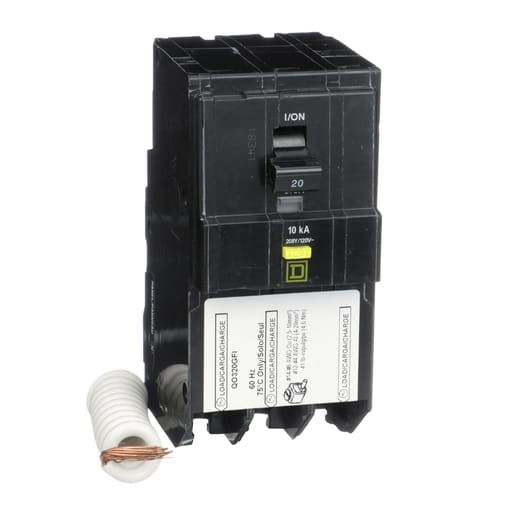

Square-D / Schneider - SQD QO320GFI Mini circuit breaker,

CopyCopy
Square-D / Schneider - SQD QO320GFI Mini circuit breaker,

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901298588

  • Amperage - 20 Amp

  • Applications - Not rated

  • Catalog Number - QO320GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

Packaging

  • 1 ea

EAN

00785901298588

Part #

214828

Catalog #

QO320GFI

Commercial reference

QO320GFI

12-Digit UPC:

785901298588

Amperage:

20 Amp

Applications:

Not rated

Catalog Number:

QO320GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Ireland

Current:

20 Amp

Depths:

74 mm

ERP_productname:

SQD QO320GFI MINIATURE CIRCUIT BREAKER 208Y/120V 20A

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-In

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

57 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_30830358

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 20A at 208Y/120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: HLO1; QO142M200P; QO142L225PG; QO3HT; GFI2PA; QO1HPL; QO342MQ200; QO1PL; QO1816M200FTRB; QO2DTI; QO130L200PG; QO2DTIM; QO816L100RB; QOGFI2PAF; QO342L225G; QO24L70RB; QO324L125G
