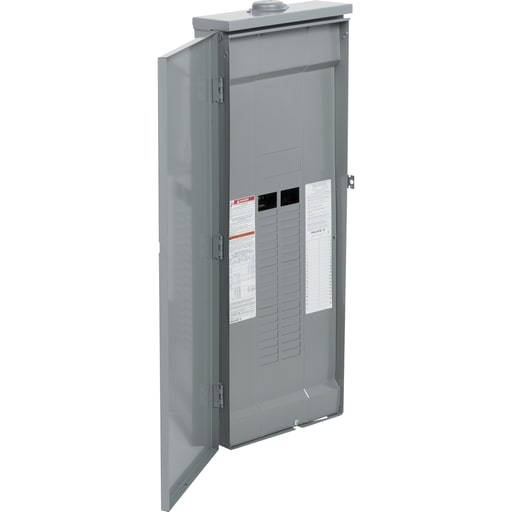

Square-D / Schneider - SQD QO342ML2RB Load center, QO, 3 p

CopyCopy
Square-D / Schneider - SQD QO342ML2RB Load center, QO, 3 p

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901751144

  • Amperage - 225 Amp

  • Catalog Number - QO342ML2RB

  • Conductor Size - 6 AWG-300 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901751144

Part #

268195

Catalog #

QO342ML2RB

Commercial reference

QO342ML2RB

12-Digit UPC:

785901751144

Amperage:

225 Amp

Catalog Number:

QO342ML2RB

Conductor Size:

6 AWG-300 kcmil

Country of Origin:

USA

Current:

225 Amp

Depths:

108 mm

ERP_productname:

SQD QO342ML2RB LOAD CENTER, QO, 3 PHASE, 42 SPACES, 42 CIRCUITS, 225A CONVERTIBLE MAIN LUGS, NEMA3R, CSA, UL

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Enclosure Type:

Weatherproof enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

976 mm

NEMA Size:

3R

Number of Circuits:

42

Number of Phases:

3,4 Phase

Sub Brand:

QO

Type:

Load Center

Voltage:

120/240 Volt

Widths:

361 mm

Wire Size:

AWG 6...300 kcmil aluminium/copper

SoneparProductId:

SKU_US_30237219

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides 225A convertible main lugs in a NEMA 3R enclosure. This product is UL and CSA rated. Compatible Products: PK12GTA
