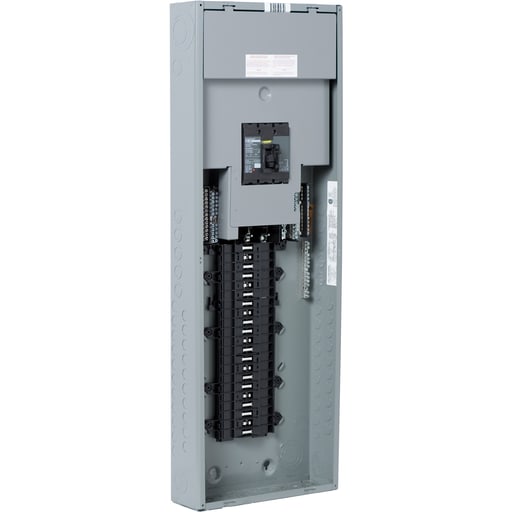

Square-D / Schneider - SQD QO342MQB100 Load center, QO, 3

CopyCopy
Square-D / Schneider - SQD QO342MQB100 Load center, QO, 3

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901884217

  • Amperage - 100 Amp

  • Catalog Number - QO342MQB100

  • Country of Origin - USA

  • Depths - 94 mm

Packaging

  • 1 ea

EAN

00785901884217

Part #

248553

Catalog #

QO342MQB100

Commercial reference

QO342MQB100

12-Digit UPC:

785901884217

Amperage:

100 Amp

Catalog Number:

QO342MQB100

Country of Origin:

USA

Depths:

94 mm

ERP_productname:

SQD QO342MQB100 LOAD CENTER, QO, 3 PHASE, 42 SPACES, 42 CIRCUITS, 100A CONVERTIBLE MAIN BREAKER, NEMA1, SPECIAL

Enclosure:

Welded sheet steel

Enclosure Material:

Steel

Family Brand Name:

Square D

Heights:

997 mm

Interrupt Rating:

25 kAIC

Material:

Tin Plated Copper: Busbar

Number of Circuits:

42

Number of Phases:

3,4 Phase

Short Circuit Current:

25 kA

Short Circuit Current Ratng:

25 kA

Sub Brand:

QO

Type:

Load Center

Voltage:

240 VAC

Widths:

362 mm

Wire Size:

AWG 4...250 kcmil aluminium/copper NULL

SoneparProductId:

SKU_US_277725994

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 42 spaces and 42 circuits. This system provides a 100A convertible main breaker in a NEMA 1 enclosure. This product is CSA rated. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PK12GTA; QOC342UQC
