Square-D / Schneider - SQD QO350EPD Mini circuit breaker,

CopyCopy
Square-D / Schneider - SQD QO350EPD Mini circuit breaker,

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901957126

  • Amperage - 50 Amp

  • Applications - Not rated

  • Catalog Number - QO350EPD

  • Circuit Breaker Type - Ground Fault Protecting Class B 30 MA

Packaging

  • 1 ea

EAN

00785901957126

Part #

202435

Catalog #

QO350EPD

Commercial reference

QO350EPD

12-Digit UPC:

785901957126

Amperage:

50 Amp

Applications:

Not rated

Catalog Number:

QO350EPD

Circuit Breaker Type:

Ground Fault Protecting Class B 30 MA

Conductor Size:

12-4 AWG (AL)/14-6 AWG (CU)

Country of Origin:

Mexico

Current:

50 Amp

Depths:

74 mm

ERP_productname:

SQD QO350EPD MINIATURE CIRCUIT BREAKER 120/240V 50A

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-In

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Tc Connection:

Box lugs

Type:

Miniature circuit-breaker

Voltage:

240 Volt

Widths:

57 mm

Wire Size:

AWG 12...AWG 4 aluminium;AWG 14...AWG 6 copper NULL

SoneparProductId:

SKU_US_29877678

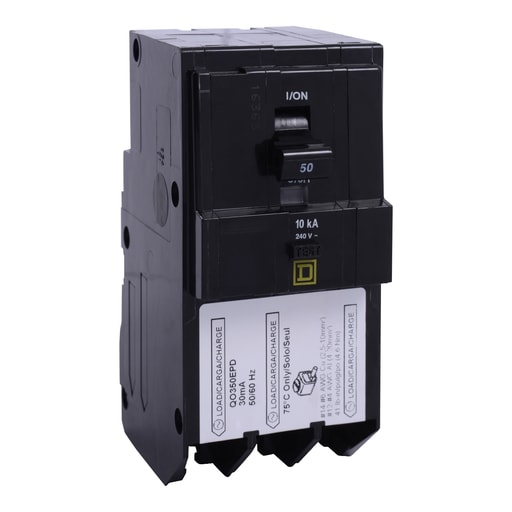

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 50A at 240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
