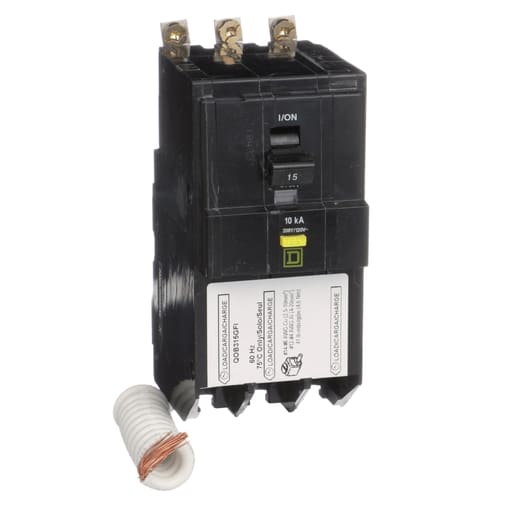

Square-D / Schneider - SQD QOB315GFI Mini circuit breaker,

CopyCopy
Square-D / Schneider - SQD QOB315GFI Mini circuit breaker,

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901811183

  • Amperage - 15 Amp

  • Applications - NOT RATED

  • Catalog Number - QOB315GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

Packaging

  • 1 ea

EAN

00785901811183

Part #

289810

Catalog #

QOB315GFI

Commercial reference

QOB315GFI

12-Digit UPC:

785901811183

Amperage:

15 Amp

Applications:

NOT RATED

Catalog Number:

QOB315GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Country of Origin:

USA

Current:

15 Amp

Depths:

74 mm

ERP_productname:

SQD QOB315GFI MINI CIRCUIT BREAKER, QO, 15A, 3 POLE, 208Y/120VAC, 10KA, 6MA GRD FAULT A, PIGTAIL, BOLT ON MOUNT

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Bolt-On

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

AWG 14...AWG 8 COPPER OR ALUMINIUM,PRESSURE PLATE

Type:

MINIATURE CIRCUIT-BREAKER

Voltage:

120 Volt

Widths:

57 mm

Wire Size:

AWG 14...AWG 8 copper or aluminium

SoneparProductId:

SKU_US_29697619

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 15A at 208Y/120VAC. This unit provides 10kA breaking capacity and bolt on mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
