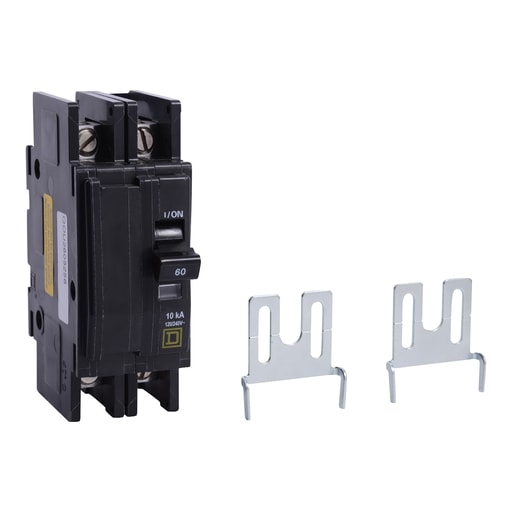

Square-D / Schneider - SQD QOU2605258 Mini circuit breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901834847
Amperage - 60 Amp
Applications - HACR and Switching Duty rated
Catalog Number - QOU2605258
Circuit Breaker Type - Standard
Packaging
1 ea
EAN
00785901834847
Part #
220130
Catalog #
QOU2605258
Commercial reference
QOU2605258
12-Digit UPC:
785901834847
Amperage:
60 Amp
Applications:
HACR and Switching Duty rated
Catalog Number:
QOU2605258
Circuit Breaker Type:
Standard
Country of Origin:
Mexico
Depths:
2.95 Inch
ERP_productname:
SQD QOU2605258 MINIATURE CIRCUIT BREAKER 120/240V 60A
Family Brand Name:
Square D
Heights:
4.05 Inch
Interrupt Rating:
5, 10 kAIC
Length:
2.95 Inch
Mounting Type:
Unit Mount
Number of Poles:
2 Pole
Short Circuit Current:
10 kA
Tc Connection:
AWG 14...AWG 2 ALUMINIUM/COPPER,BOX LUGS, LINE SIDE- QUICK CONNECT TERMINALS, LOAD SIDE
Type:
Miniature circuit-breaker
Voltage:
120 Volt
Widths:
1.5 in
SoneparProductId:
SKU_US_29214921
