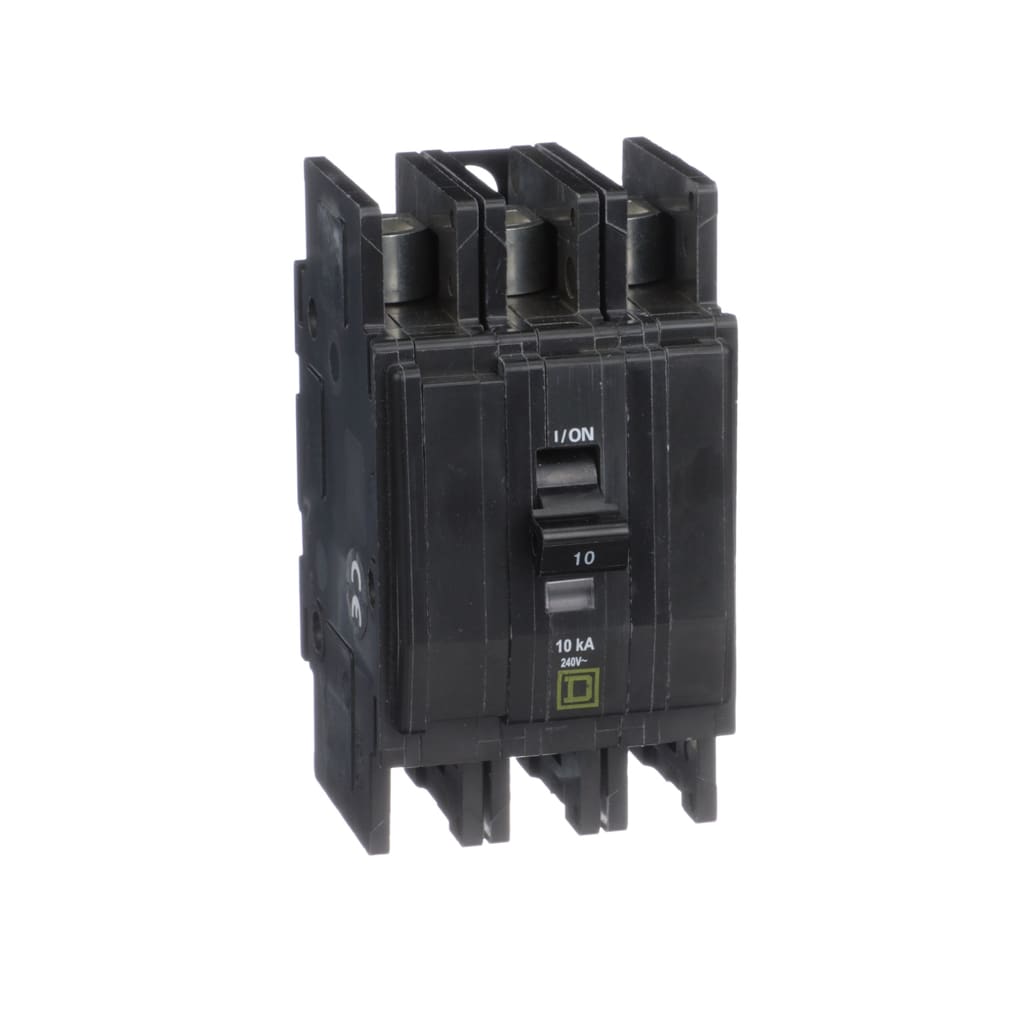

Square-D / Schneider - SQD QOUR310B Mini circuit breaker,

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901939962

  • Amperage - 10 Amp

  • Applications - For HACR and Switching Duty Rated

  • Catalog Number - QOUR310B

  • Country of Origin - USA

Packaging

  • 12 ea

EAN

00785901939962

Part #

396543

Catalog #

QOUR310B

Commercial reference

QOUR310B

12-Digit UPC:

785901939962

Amperage:

10 Amp

Applications:

For HACR and Switching Duty Rated

Catalog Number:

QOUR310B

Country of Origin:

USA

Depths:

2.95 Inch

ERP_productname:

SQD QOUR310B MINI CIRCUIT BREAKER, QOU, 10A, 3 POLE, 240 VAC, 10KA, FIELD REVERSIBLE LUGS, BULK PACK

Family Brand Name:

Square D

Heights:

4.05 Inch

Interrupt Rating:

5, 10 kAIC

Length:

2.95 Inch

Number of Poles:

3 Pole

Sub Brand:

QO®

Tc Connection:

Solid Or Stranded Wire, 22 - 10 AWG (0.340 - 6.000 SQ-MM)

Type:

Miniature Push Button Box

Voltage:

120/240 Volt AC-240 Volt AC-120 Volt AC-48 Volt DC

Widths:

2.25 in

SoneparProductId:

SKU_US_529935165

QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting. Distributes in a Bulk packing. Compatible Products: QOU2PAFLA; HLO1; BCV; QOULFSC1B; QOU2DTILA; QOUMFS1; QOUMF3B
