Square-D / Schneider - SQD RC3040M150SL All in one, Homeli

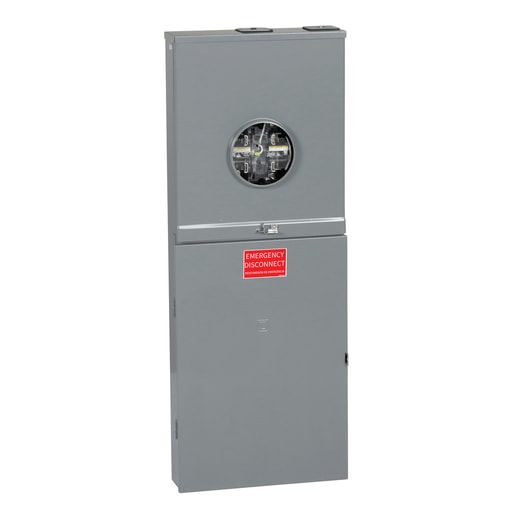

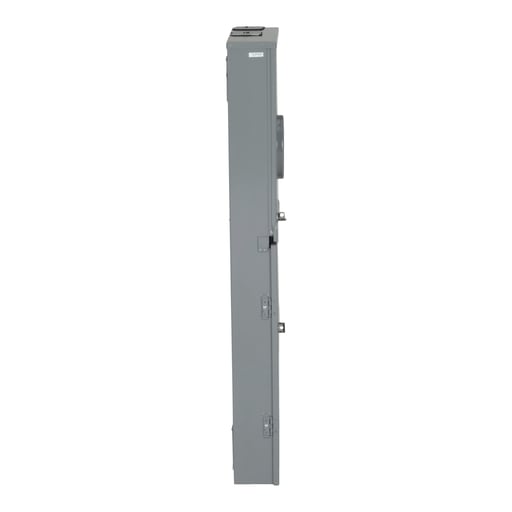

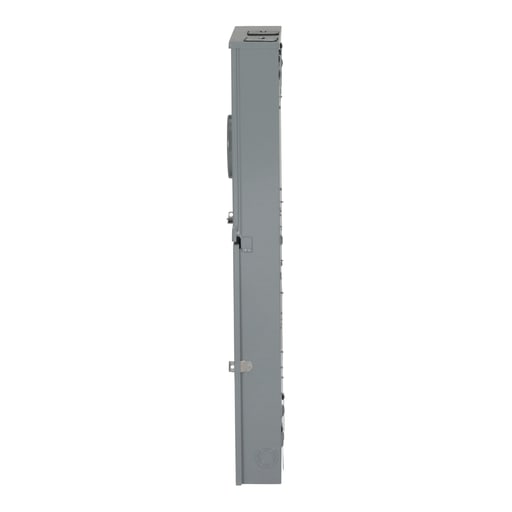

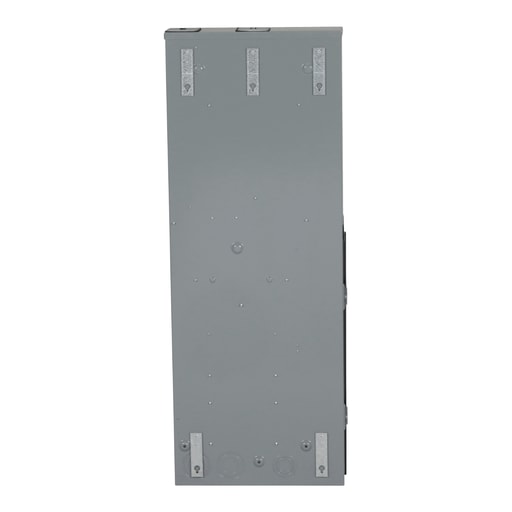

Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W P 115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device has a ringless meter socket with lever bypass. This unit can be feed from an overhead or underground service. The service disconnect has a HOM2100 with a maximum rating of 100 A. Device has a 10 kA short circuit current rating. Load center has 30 spaces which will accept up to 10 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mount enclosure that is 20.79 inches tall, 13.46 inches wide and 4.56 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance meter main unit is UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A100; HOM120; A125; HOM115; HOMFP; A150; HOM230; LK150AN; A200; HOM2175SB; HOM220; A250; HOM240; PK23GTA; ACP; HOM115CAFI; MMBLC; HOM250; OHBL
