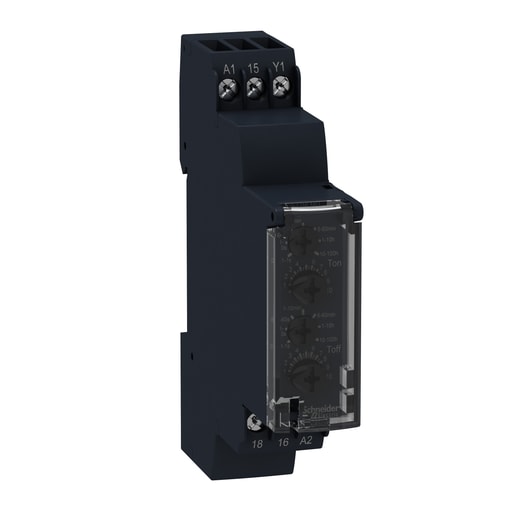

Square-D / Schneider - SQD RE17RLJU single function relay,

Essential specifications

12-Digit UPC - 606480552710
Applications - Asymmetrical flashing timer
Catalog Number - RE17RLJU
Country of Origin - Indonesia
Depths - 72 mm

Packaging

1 ea

EAN

03606480552717

Part #

120028

Catalog #

RE17RLJU

Commercial reference

RE17RLJU

12-Digit UPC:

606480552710

Applications:

Asymmetrical flashing timer

Catalog Number:

RE17RLJU

Country of Origin:

Indonesia

Depths:

72 mm

ERP_productname:

SQD RE17RLJU TIMER 12VAC/VDC IN 8A SPDT RELAY OUT FLA

Family Brand Name:

Schneider Electric

Heights:

90 mm

Input Voltage:

5 V

Size:

2.83 in

Sub Brand:

RE17R

Tc Connection:

SCREW TERMINALS, 1 X 0.5...1 X 3.3 MMA. AWG 20...AWG 12) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA. AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA. AWG 24...AWG 16) FLEXIBLE WITH CABLE END

Type:

Dual function relay

Widths:

17.5 mm

SoneparProductId:

SKU_US_30360226

"This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 12V AC/DC." "It also has 1 changeover contact SPDT (single pole double throw)." "It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC." 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: TM221CE16T
