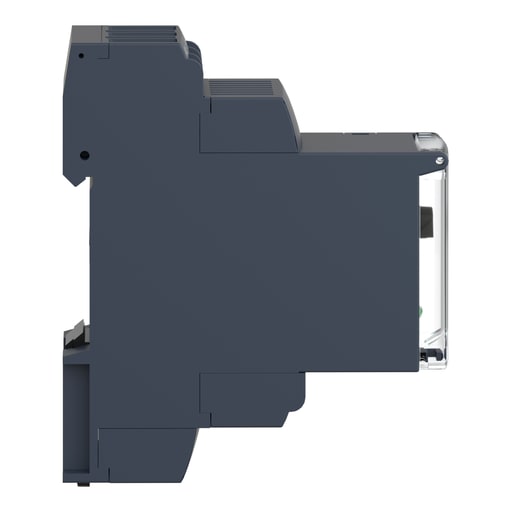

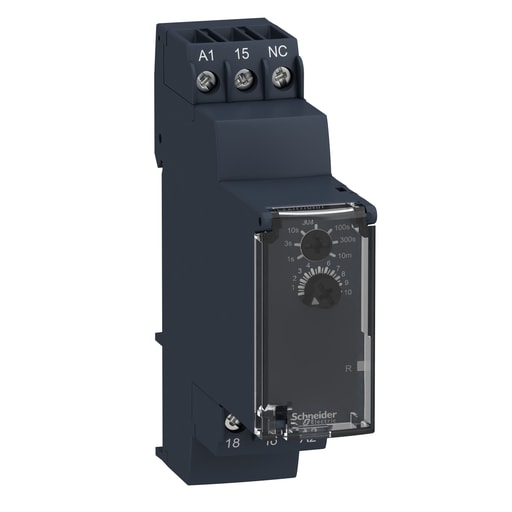

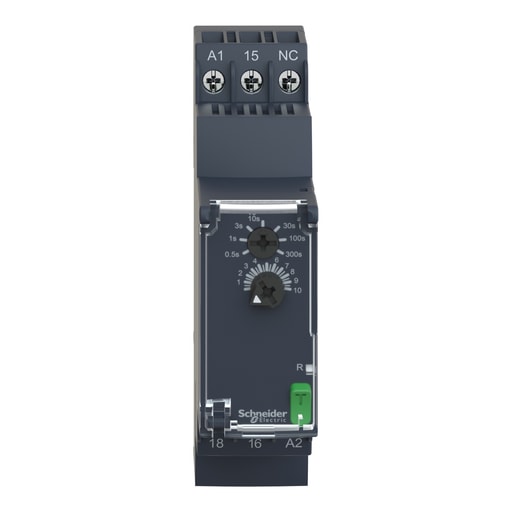

Square-D / Schneider - SQD RE22R1KMR single function relay

Essential specifications

12-Digit UPC - 606480792451
Catalog Number - RE22R1KMR
Country of Origin - USA
ERP_productname - SQD RE22R1KMR TIMING RELAY
Family Brand Name - Schneider Electric

Packaging

1 ea

EAN

03606480792458

Part #

109875

Catalog #

RE22R1KMR

Commercial reference

RE22R1KMR

12-Digit UPC:

606480792451

Catalog Number:

RE22R1KMR

Country of Origin:

USA

ERP_productname:

SQD RE22R1KMR TIMING RELAY

Family Brand Name:

Schneider Electric

Input Voltage:

2.4 V

Size:

0.89 in

Tc Connection:

SCREW TERMINALS, 1 X 0.5...1 X 3.3 MMA. AWG 20...AWG 12) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA. AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA. AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA. AWG 24...AWG 16) FLEXIBLE WITH CABLE END

Type:

Relay;Single function relay

Widths:

22.5 mm

SoneparProductId:

SKU_US_192392534

This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours, has an output rating of 5 amperes and it is 22.5 millimeters wide. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: RE22R2KMR; RE22R1MKMR; RENF22R2MMW
