Square-D / Schneider - SQD RE22R2AMU dual function relay,
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 606480676560
Applications - ON-DELAY TIMING
Catalog Number - RE22R2AMU
Country of Origin - USA
ERP_productname - SQD RE22R2AMU TIMER 24-240VAC/24VDC IN 8A DPDT OUT ON DELAY
Packaging
1 ea
EAN
03606480676567
Part #
138378
Catalog #
RE22R2AMU
Commercial reference
RE22R2AMU
12-Digit UPC:
606480676560
Applications:
ON-DELAY TIMING
Catalog Number:
RE22R2AMU
Country of Origin:
USA
ERP_productname:
SQD RE22R2AMU TIMER 24-240VAC/24VDC IN 8A DPDT OUT ON DELAY
Family Brand Name:
Schneider Electric
Size:
0.89 in
Sub Brand:
RE22
Tc Connection:
SCREW TERMINALS, 2 X 1.5 MMA. WITH CABLE END-SCREW TERMINALS, 2 X 2.5 MMA. WITHOUT CABLE END
Type:
Dual function relay
Widths:
22.5 mm
SoneparProductId:
SKU_US_29958164

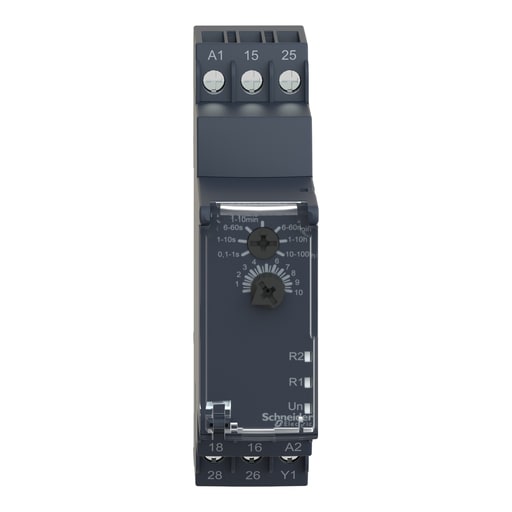

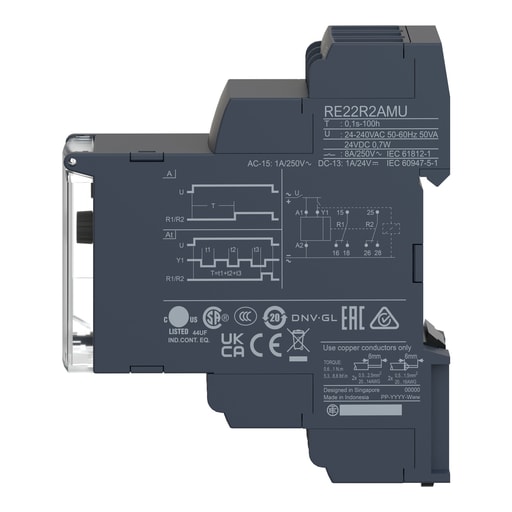

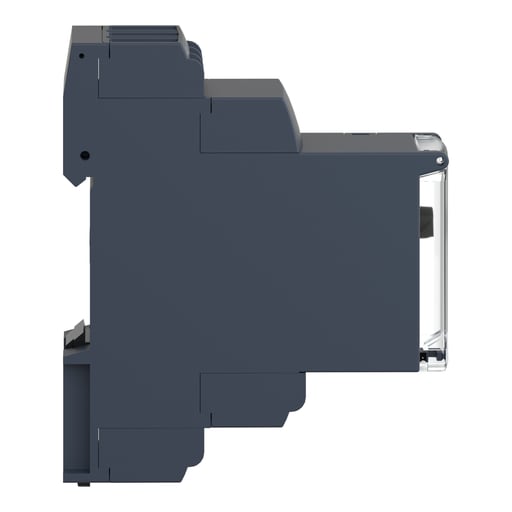

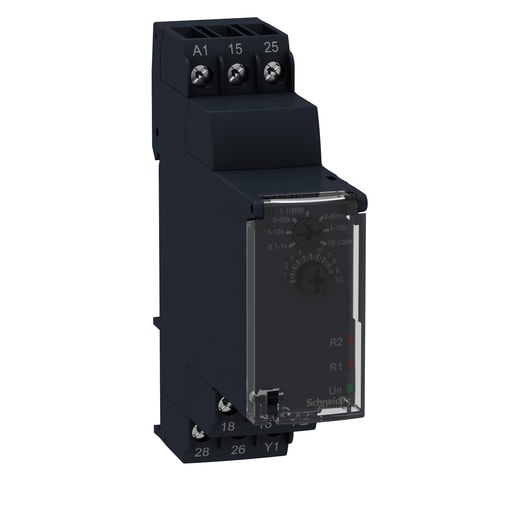

This Harmony RE22 modular single function timer can be set between 0.1 seconds and 100 hours. It provides function A and At and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: RE22R2MMU; RE17RAMU; RENF22R2MMW
