Square-D / Schneider - SQD RPM32FD PLUG-IN RELAY 250V 15A

Essential specifications

12-Digit UPC - 785901797203
Amperage - 15 Amp 250 V AC-15 Amp 28 V DC,15 Amp 277 V AC) UL-15 Amp 28 V DC) UL-15 Amp 250 V AC) NO IEC-15 Amp 28 V DC) NO IEC-7.5 Amp 250 V AC) NC IEC-7.5 Amp 28 V DC) NC IEC
Catalog Number - RPM32FD
Country of Origin - China
ERP_productname - SQD RPM32FD PLUG-IN RELAY 250V 15A RPM +OPTIONS

Packaging

1 ea

EAN

00785901797203

Part #

195909

Catalog #

RPM32FD

Commercial reference

RPM32FD

12-Digit UPC:

785901797203

Amperage:

15 Amp 250 V AC-15 Amp 28 V DC,15 Amp 277 V AC) UL-15 Amp 28 V DC) UL-15 Amp 250 V AC) NO IEC-15 Amp 28 V DC) NO IEC-7.5 Amp 250 V AC) NC IEC-7.5 Amp 28 V DC) NC IEC

Catalog Number:

RPM32FD

Country of Origin:

China

ERP_productname:

SQD RPM32FD PLUG-IN RELAY 250V 15A RPM +OPTIONS

Family Brand Name:

Zelio

Sub Brand:

RPM

Type:

FLAT,PLUG-IN RELAY

SoneparProductId:

SKU_US_84951516

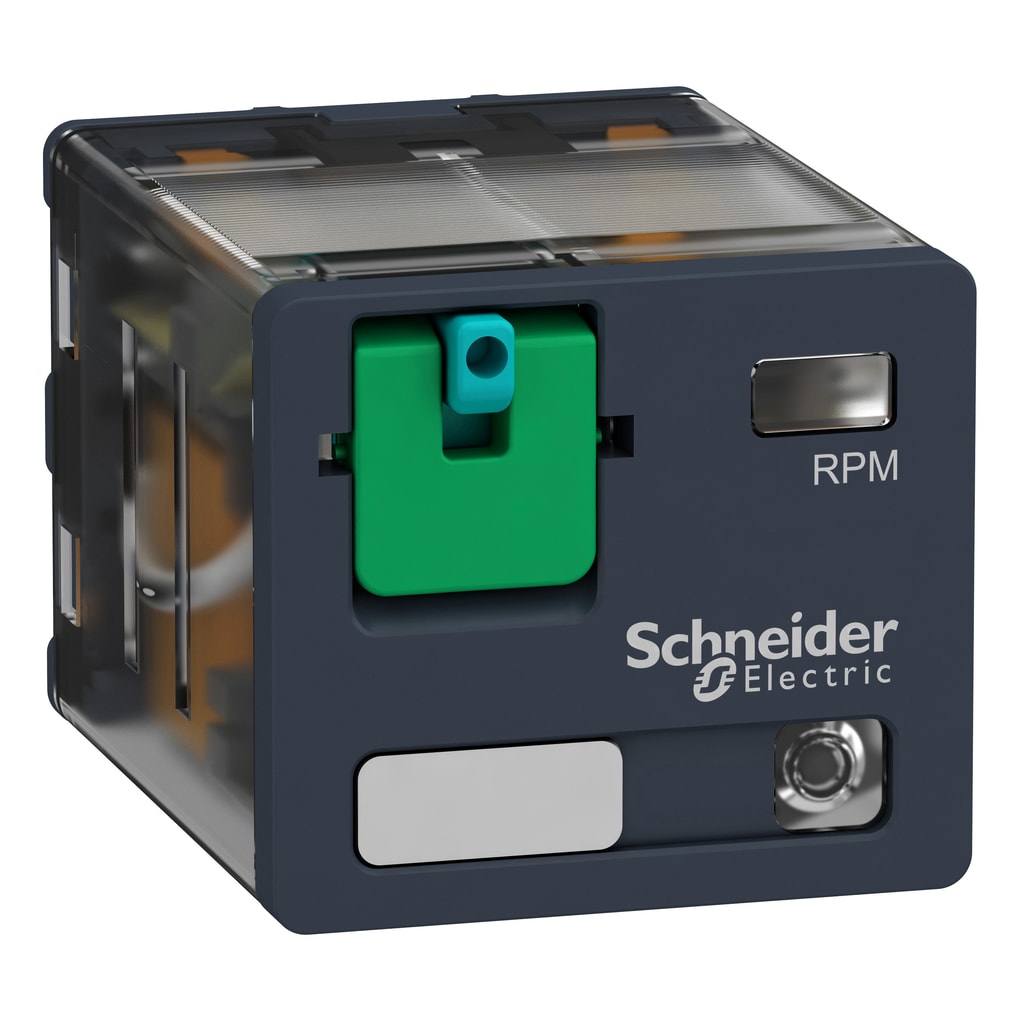

This Zelio RPM power plug-in relay has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 15A. It has a large choice of number of contacts for high rated current use. It also offers one-step lockable test button and .Power On. LED for readiness. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
